1-1939638-3 - TE Connectivity

Description: PCB Mount Header, Horizontal, Wire-to-Board, 26 Position, 2 mm [.079 in] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Dynamic 1000 Series

Download 1-1939638-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

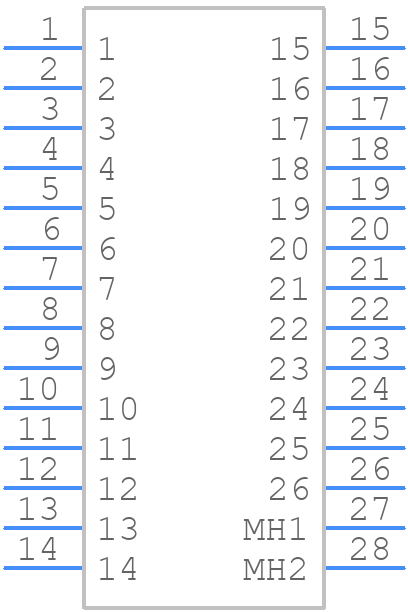

Symbol
1-1939638-3 - TE Connectivity - PCB symbol
click to zoom

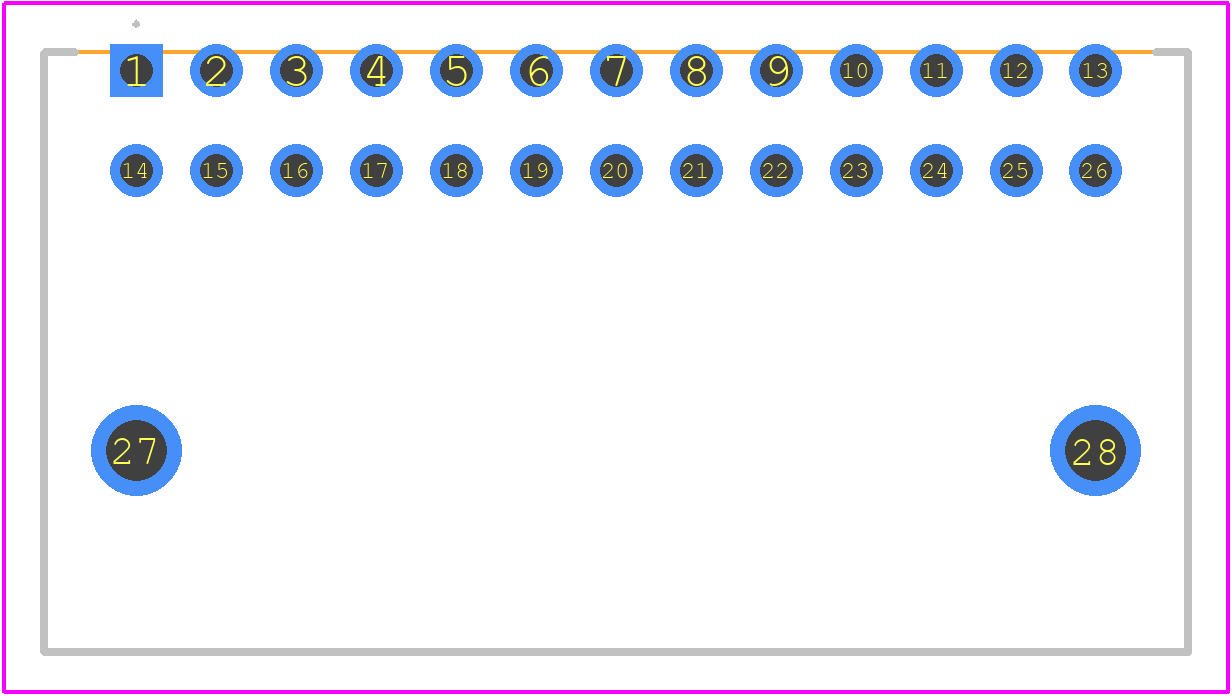

PCB Footprints
1-1939638-3 - TE Connectivity PCB footprint - Other - Other - 1-1939638-3-1
click to zoom
3D Models
1-1939638-3 - TE Connectivity - 3D model - Other - 1-1939638-3-1
click to zoom

1-1939638-3 Details

  • Manufacturer Part Number:

    1-1939638-3

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

1-1939638-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1939638-3 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance on torque values for your specific application.
  • While the 1-1939638-3 connector is designed to be robust, it's essential to evaluate its suitability for high-vibration environments on a case-by-case basis. TE Connectivity provides vibration testing data, but it's crucial to consult with their technical support to determine the connector's performance in your specific application.
  • The 1-1939638-3 connector is designed to operate in a temperature range of -40°C to 125°C. However, for harsh environments, it's essential to consult TE Connectivity's environmental testing data and application notes to ensure the connector meets your specific requirements.
  • The mating cycle life of the 1-1939638-3 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions. However, it's recommended to consult TE Connectivity's technical support for specific guidance on mating cycle life for your application.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines for the 1-1939638-3 connector to ensure proper mating, signal integrity, and thermal management. Consult their application notes and technical support for specific guidance on PCB layout considerations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1939638-3 Overview

Use the download button to access the 1-1939638-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-193, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
