1-1939638-5 - TE Connectivity

Description: PCB Mount Header, Horizontal, Wire-to-Board, 30 Position, 2 mm [.079 in] Centerline, Fully Shrouded, Gold (Au), Dynamic 1000 Series

Download 1-1939638-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

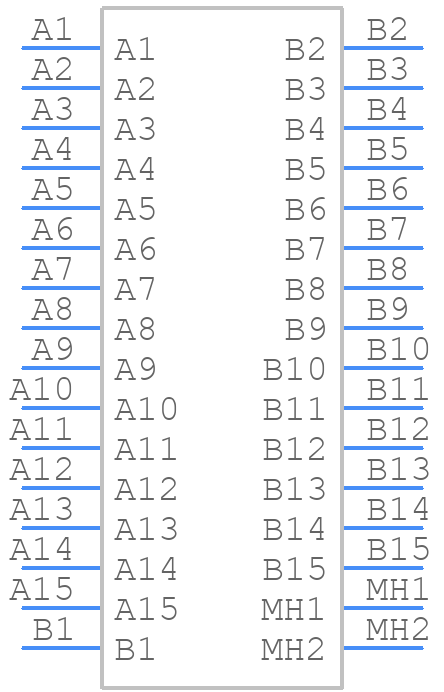

1-1939638-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

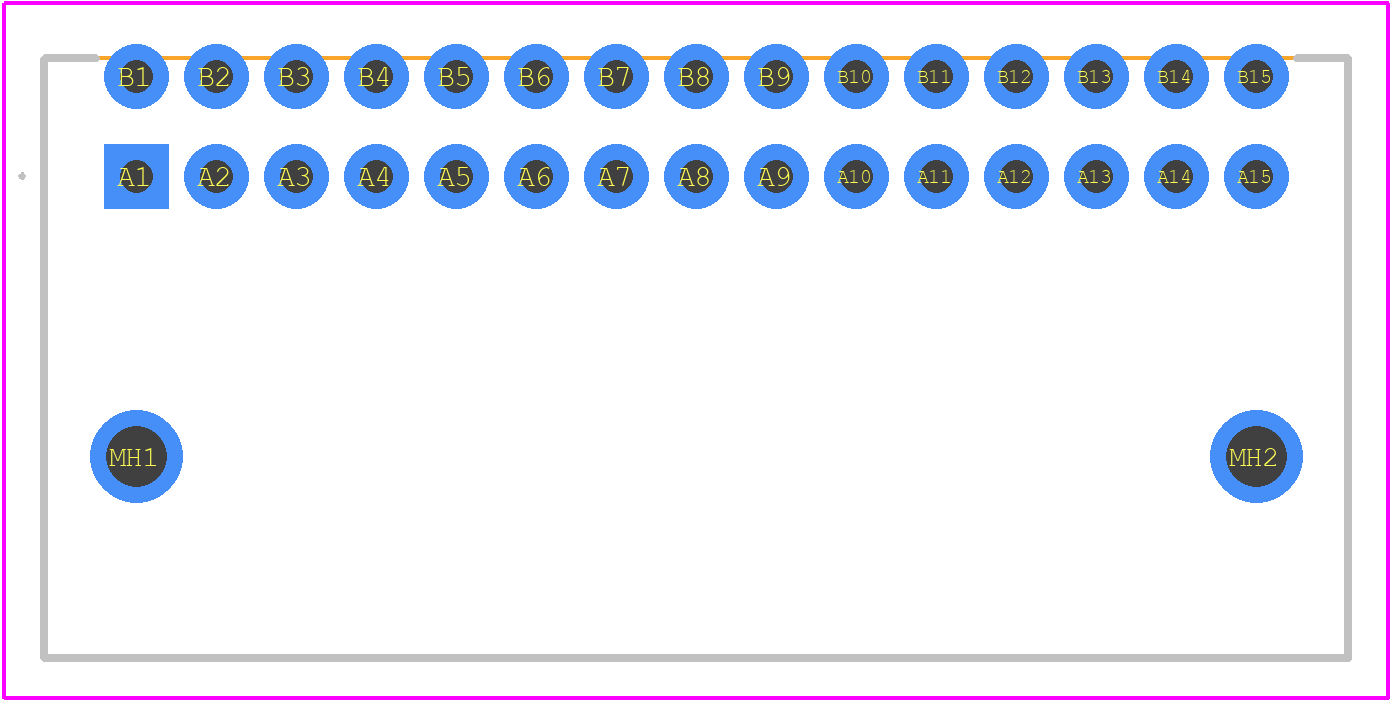

1-1939638-5 - TE Connectivity PCB footprint - Other - Other - 1-1939638-5-2
click to zoom
3D Models
1-1939638-5 - TE Connectivity - 3D model - Other - 1-1939638-5-2
click to zoom

1-1939638-5 Details

  • Manufacturer Part Number:

    1-1939638-5

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

1-1939638-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1939638-5 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific torque recommendations tailored to your application.
  • While the 1-1939638-5 connector is designed to be robust, it's crucial to assess the specific vibration requirements of your application. TE Connectivity provides vibration testing data, but it's recommended to consult with their technical support to determine the connector's suitability for your specific use case.
  • The 1-1939638-5 connector is designed to operate within a specific temperature range (-40°C to 125°C) and humidity level. However, it's essential to consult the datasheet and application notes to ensure the connector meets your specific environmental requirements. Additionally, consider consulting with TE Connectivity's technical support for customized guidance.
  • The mating cycle life of the 1-1939638-5 connector is typically around 500-1000 cycles, depending on the application and environmental conditions. However, it's recommended to consult TE Connectivity's technical support or application notes for more specific guidance tailored to your use case.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines and design considerations to ensure proper connector performance and reliability. Consult their application notes and technical support for customized guidance on PCB design and layout.
