1-1969543-0 - TE Connectivity

Description: TE Connectivity EP Series, Series Number 1-1969543, 2.5mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination

Download 1-1969543-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1969543-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

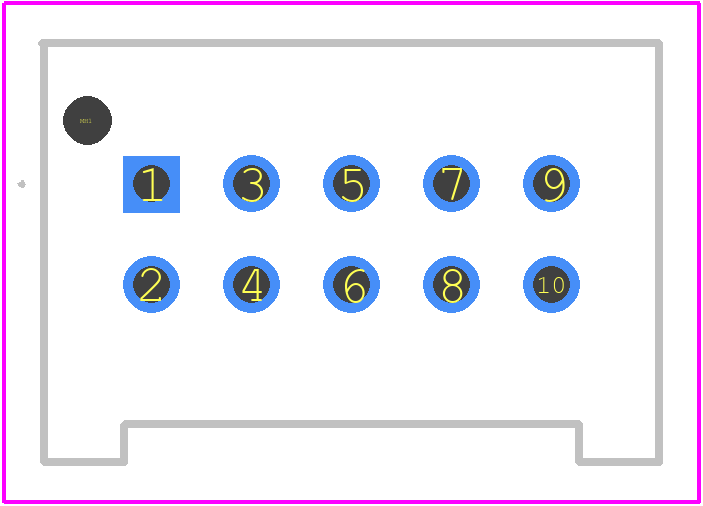

1-1969543-0 - TE Connectivity PCB footprint - Other - Other - 1-1969543-0-2
click to zoom
3D Models
1-1969543-0 - TE Connectivity - 3D model - Other - 1-1969543-0-2
click to zoom

1-1969543-0 Details

  • Manufacturer Part Number:

    1-1969543-0

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.412 inch

  • Body Depth:

    0.386 inch

  • Body Length:

    0.606 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    RND PIN-SKT

  • Filter Feature:

    NO

  • Insulator Color:

    WHITE

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.098 inch

  • Mating Contact Row Spacing:

    0.098 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.5 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Terminal Length:

    0.134 inch

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

1-1969543-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1-1969543-0 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 1-1969543-0 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not fully sealed against moisture or water. For outdoor use, consider using a connector with a higher IP rating or applying additional sealing measures.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, you should verify the wire size and insulation diameter to ensure proper fit and connection reliability. Consult with TE Connectivity or a qualified engineer for guidance.
  • The 1-1969543-0 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1969543-0 Overview

Use the download button to access the 1-1969543-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-196, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
