1-1969688-4 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 4 Position, 6 mm [.236 in] Centerline, Fully Shrouded, Pre-Tin, Through Hole - Solder, Power Triple Lock

Download 1-1969688-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1969688-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

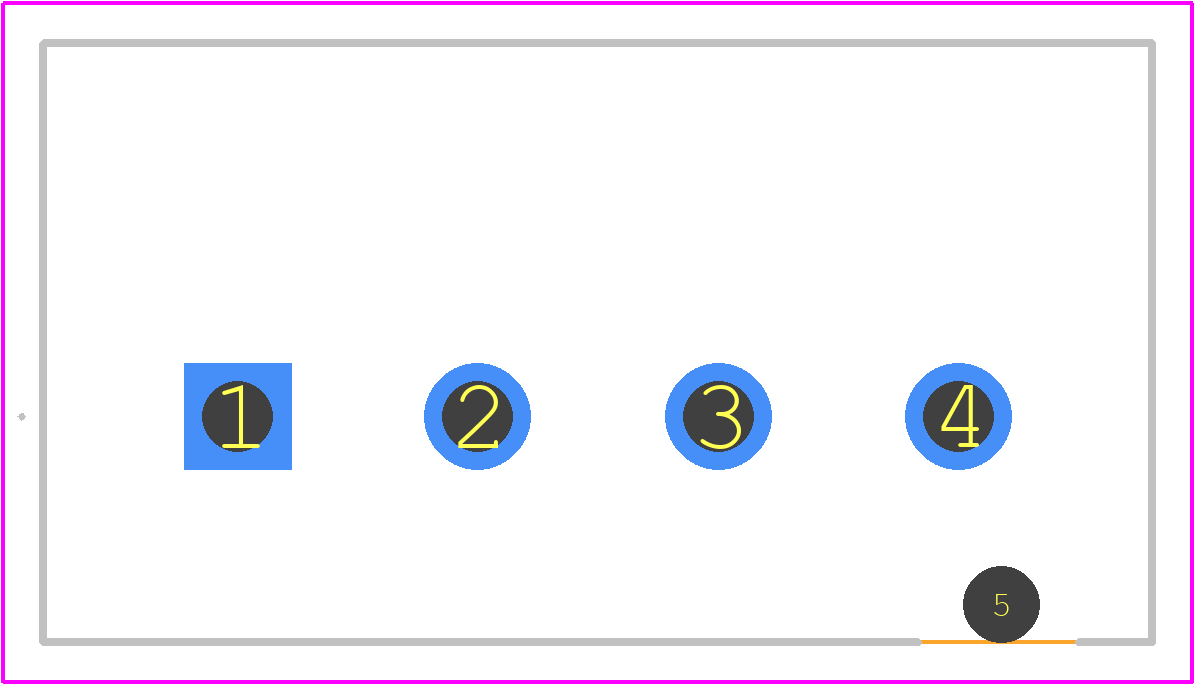

1-1969688-4 - TE Connectivity PCB footprint - Other - Other - 1-1969688-4-8
click to zoom
3D Models
1-1969688-4 - TE Connectivity - 3D model - Other - 1-1969688-4-8
click to zoom

1-1969688-4 Details

  • Manufacturer Part Number:

    1-1969688-4

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.3

  • Board Mounting Option:

    PEG

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    GRAY

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    19A

  • Mating Information:

    5-1971773-4

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    A

  • Rated Current (Signal):

    19 A

  • Rated Voltage:

    600 V

  • Reference Standard:

    UL, VDE

  • Terminal Pitch:

    6 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1-1969688-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1969688-4 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow the recommended torque specification to ensure proper mating and prevent damage to the connector.
  • Yes, the 1-1969688-4 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications where vibration is a concern, such as in industrial, automotive, or aerospace industries.
  • The 1-1969688-4 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to follow the recommended operating conditions and environmental specifications to ensure reliable performance.
  • Yes, the 1-1969688-4 connector is designed to be compatible with other TE Connectivity products, including cables, connectors, and accessories. It's essential to verify compatibility before integrating the connector into your system.
  • The typical lead time for delivery of the 1-1969688-4 connector varies depending on the region, quantity, and availability. It's best to check with TE Connectivity or an authorized distributor for the most up-to-date lead time information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1969688-4 Overview

Use the download button to access the 1-1969688-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-196, or try a keyword search, such as Power Connectors
