1-1971817-3 - TE Connectivity

Description: 3P,RAST 2.5 Tab Header,Ex- Locking,THV

Download 1-1971817-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

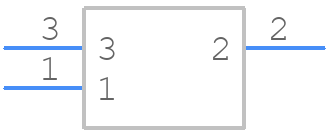

Symbol
1-1971817-3 - TE Connectivity - PCB symbol
click to zoom

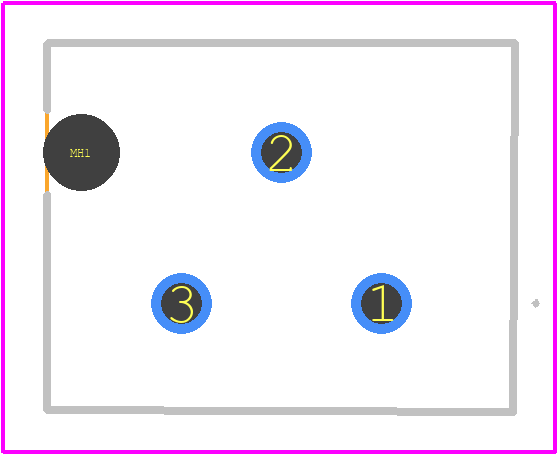

PCB Footprints
1-1971817-3 - TE Connectivity PCB footprint - Other - Other - 1-1971817-3-1
click to zoom
3D Models
1-1971817-3 - TE Connectivity - 3D model - Other - 1-1971817-3-1
click to zoom

1-1971817-3 Details

  • Manufacturer Part Number:

    1-1971817-3

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.57

  • Body Breadth:

    0.362 inch

  • Body Depth:

    0.61 inch

  • Body Length:

    0.39 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2A

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50.8u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    2 A

  • Reference Standard:

    UL

  • Shell Material:

    GLASS FILLED POLYAMIDE66

  • Terminal Length:

    0.11 inch

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

1-1971817-3 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1-1971817-3 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1-1971817-3 connector has a rating of IP67, which means it provides protection against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector and its mating components to maintain its IP67 rating in outdoor environments.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 1-1971817-3 connector. However, it's essential to ensure that the wire size and insulation meet the connector's specifications and that the connection is reliable and secure.
  • The 1-1971817-3 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1971817-3 Overview

Use the download button to access the 1-1971817-3 schematic symbol, PCB footprint, and 3D model.
