1-2013928-7 - TE Connectivity

Description: FFC & FPC Connectors 0.3MM 43POS FPC/FCC

Download 1-2013928-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

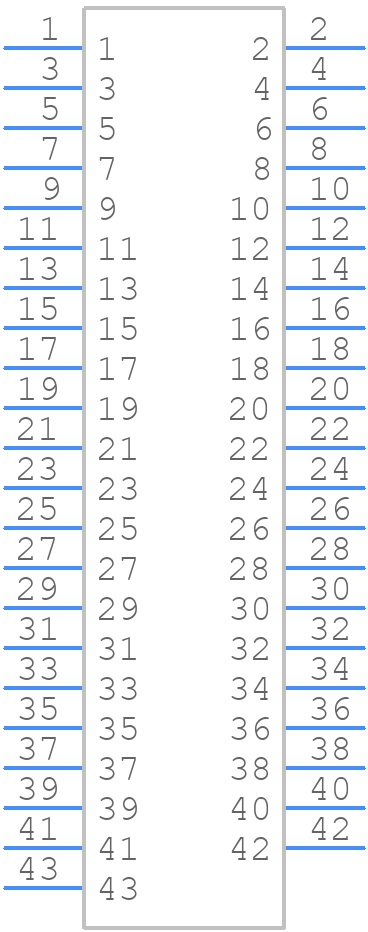

Symbol
1-2013928-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1-2013928-7 - TE Connectivity PCB footprint - Other - Other - 1-2013928-7
click to zoom
3D Models
1-2013928-7 - TE Connectivity - 3D model - Other - 1-2013928-7
click to zoom

1-2013928-7 Details

  • Manufacturer Part Number:

    1-2013928-7

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    0.035 inch

  • Body Depth:

    0.126 inch

  • Body Length:

    0.559 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    80 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    200VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    ZIF N

  • Insulation Resistance:

    50000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYETHYLENE

  • Mating Contact Pitch:

    0.012 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.921 mm

  • Plating Thickness:

    4u inch

  • Rated Current (Signal):

    0.2 A

  • Reference Standard:

    UL, CSA

  • Terminal Pitch:

    0.6096 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    43

  • Withdrawl Force-Min:

    ZIF N

1-2013928-7 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). This information can be found in the TE Connectivity application notes or by contacting their technical support.
  • Yes, the 1-2013928-7 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • The 1-2013928-7 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions outlined in the datasheet to ensure optimal performance and reliability.
  • The 1-2013928-7 connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent mating and unmating are required.
  • Yes, the 1-2013928-7 connector is part of the TE Connectivity AMPSEAL 16 connector family, which offers a range of compatible products, including cable assemblies, backshells, and accessories. This allows for easy integration and customization of connector systems.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-2013928-7 Overview

Use the download button to access the 1-2013928-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-201, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
