1-2199299-2 - TE Connectivity

1-2199299-2 Details

• Manufacturer Part Number:

  1-2199299-2

• Brand Name:

  TE Connectivity

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  TE Connectivity

• YTEOL:

  7.5

• Additional Feature:

  STANDARD: UL 94V-0

• Body Breadth:

  0.7 inch

• Body Depth:

  0.2 inch

• Body Length:

  1.4 inch

• Contact Configuration:

  RECTANGLE

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Tin (Sn)

• Contact Material:

  NOT APPLICABLE

• Contact Style:

  RND PIN-SKT

• Current Rating:

  1 A

• Device Socket Type:

  IC SOCKET

• Device Type Used On:

  DIP28

• Dielectric Withstanding Voltage:

  1000VAC V

• Housing Material:

  GLASS FILLED PBT

• Insulation Resistance:

  1000000000 Ω

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.1 inch

• Mounting Style:

  STRAIGHT

• Number of Contacts:

  28

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

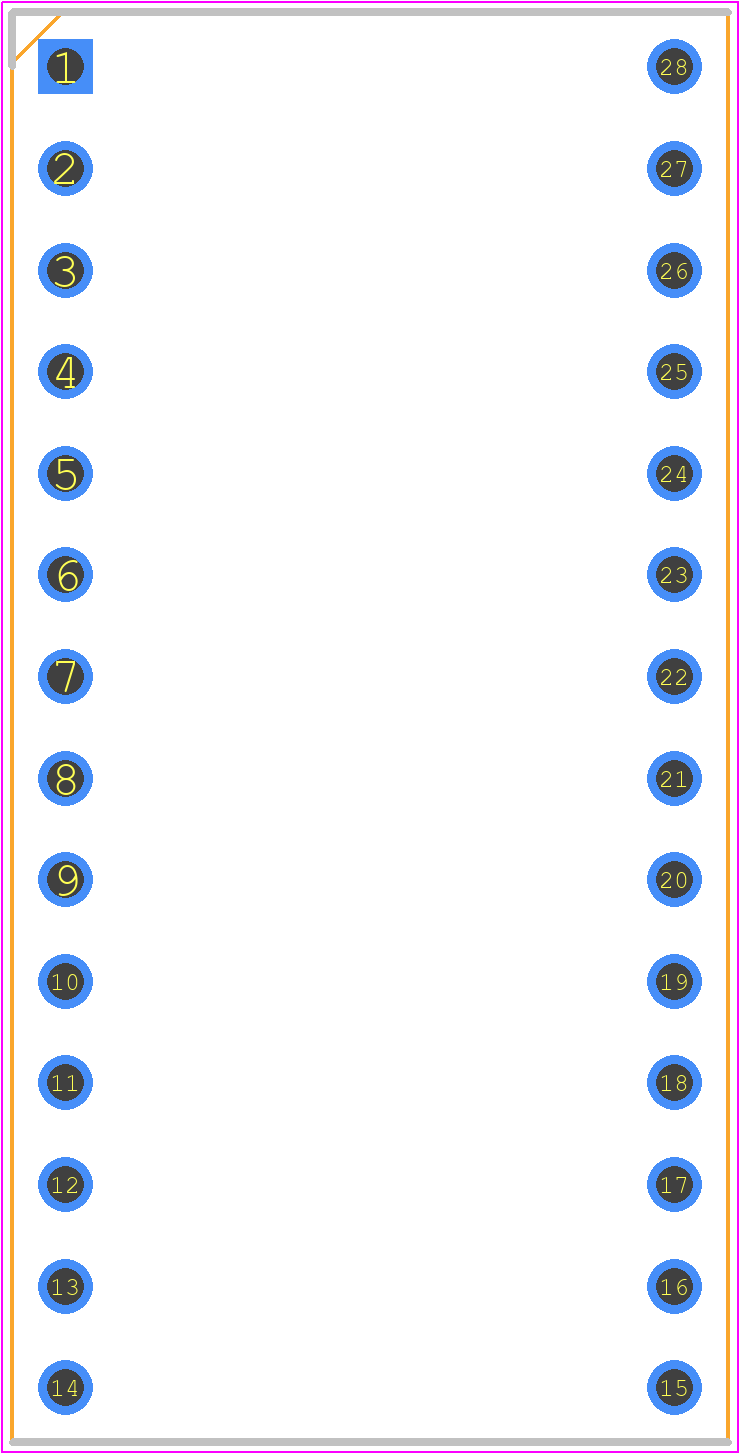

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  0.6000000000000001 mm

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER
