1-2212115-4 - TE Connectivity

Description: Power to the Board MULTI-BEAM CE 2X2 P + 2X12 S, RA

Download 1-2212115-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

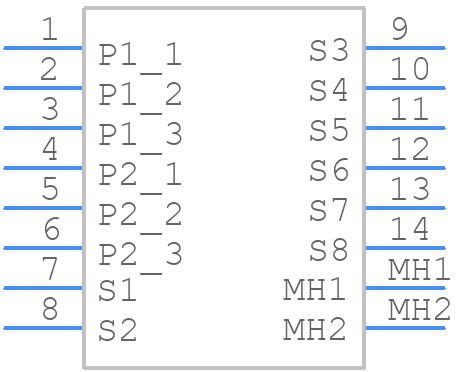

1-2212115-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

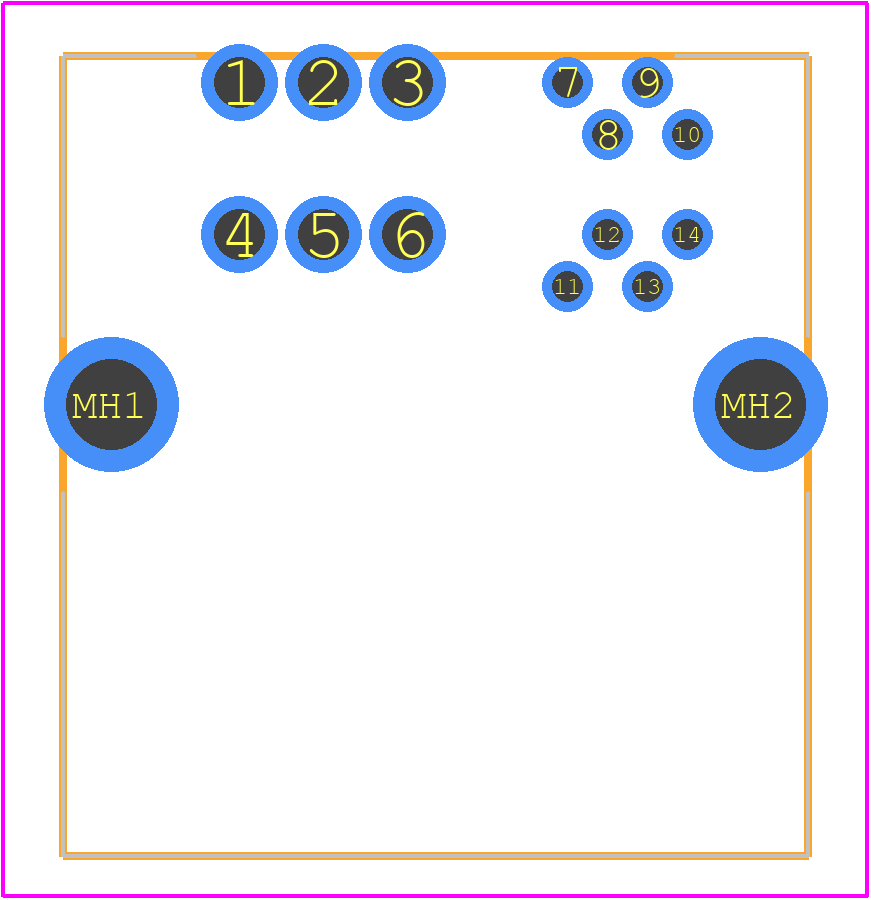

1-2212115-4 - TE Connectivity PCB footprint - Other - Other - 1-2212115-4
click to zoom
3D Models
1-2212115-4 - TE Connectivity - 3D model - Other - 1-2212115-4
click to zoom

1-2212115-4 Details

  • Manufacturer Part Number:

    1-2212115-4

  • Brand Name:

    TE Connectivity

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS IS 2.1MM

  • Board Mounting Option:

    HOLE .087

  • Body Breadth:

    0.329 inch

  • Body Depth:

    0.787 inch

  • Body Length:

    0.733 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Arrangement:

    S8P2

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    400V V

  • Durability:

    200 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    1.15 N

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    35A

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    4

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.3 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Power):

    43 A

  • Rated Current (Signal):

    2 A

  • Rated Voltage:

    100 V

  • Terminal Length:

    0.138 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • Withdrawl Force-Min:

    0.15 N

1-2212115-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1-2212115-4 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1-2212115-4 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's not recommended for direct exposure to harsh environments, such as high temperatures, humidity, or chemical exposure. Additional protection or sealing may be required for such applications.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with some limitations. However, using smaller or larger wire sizes may affect the connector's performance, reliability, and durability. It's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of using alternative wire sizes.
  • Yes, when designing the PCB layout, ensure that the connector's footprint and pinout are accurately represented. Also, consider the connector's height and width to ensure proper clearance and avoid interference with other components. Additionally, follow TE Connectivity's recommended PCB layout guidelines and consult with their application notes for specific design considerations.
