1-2236715-2 - TE Connectivity

Description: Body Features: Connector & Keying Code B | Primary Product Color Purple | Configuration Features: Number of Sections 1 | PCB Mount Orientation Horizontal | Number of Rows 4 | Number of Signal Positions 36 | Number of Positions 36 | Contact Features: Contact Mating Area Plating Material Silver | Mating Tab Width .059 INCH | Mating Tab Thickness .64 MM | Mating Tab Width 1.5 MM | Contact Size 1.5mm | Contact Type Tab | Mating Tab Thickness .025 INCH | Dimensions: PCB Thickness (Recommended) .062 INCH | PCB Th

Download 1-2236715-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

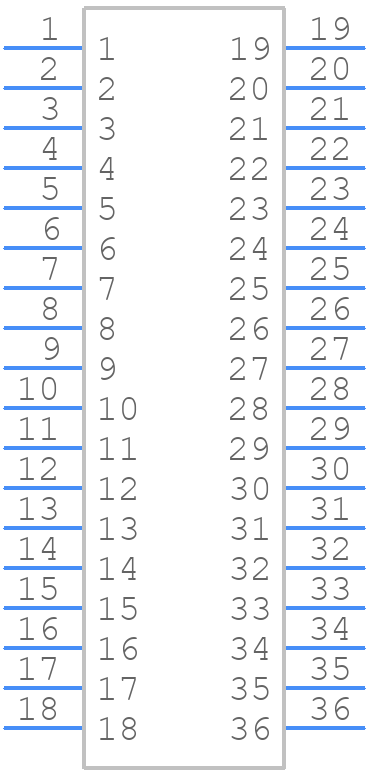

1-2236715-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

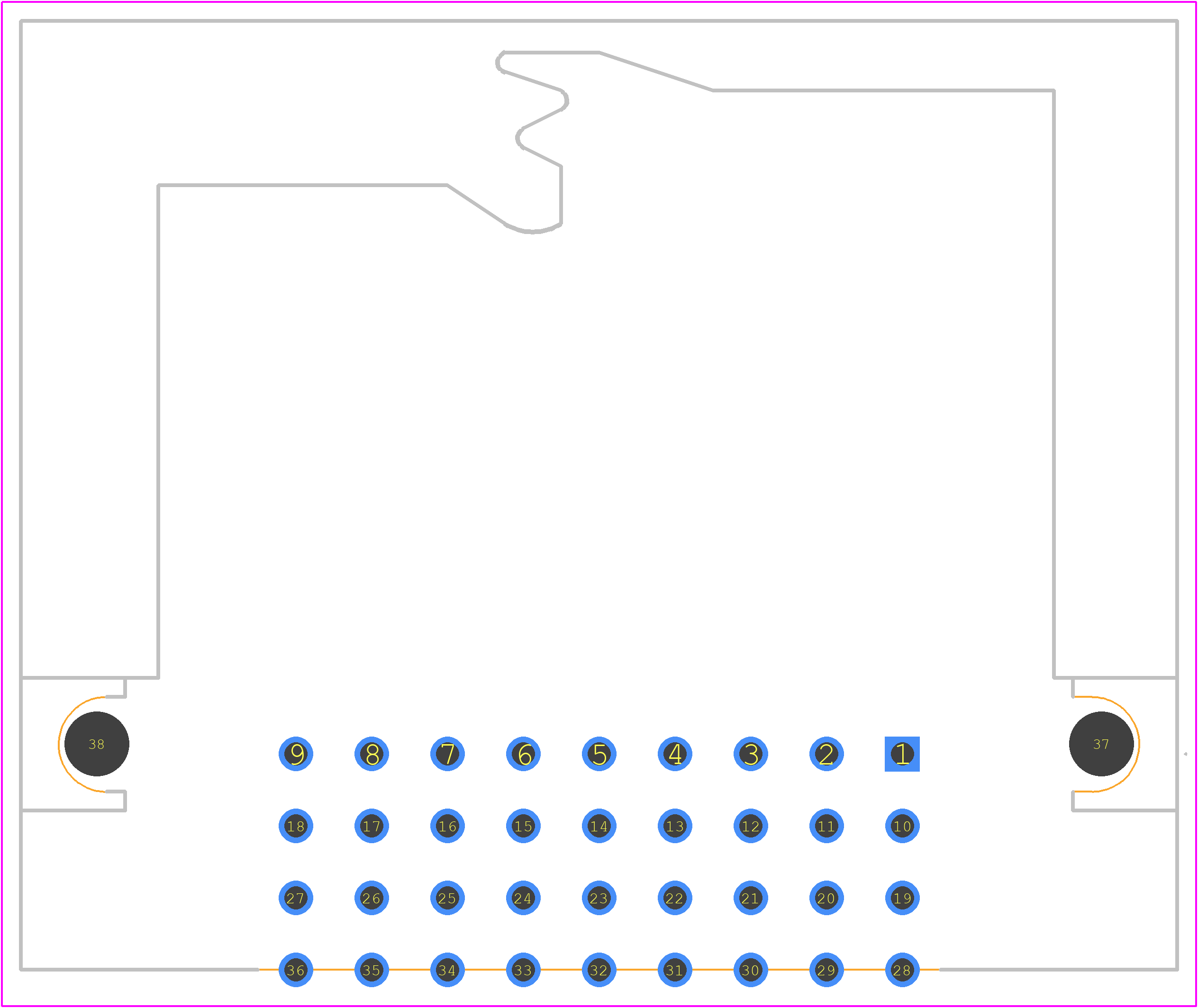

1-2236715-2 - TE Connectivity PCB footprint - Other - Other - 1-2236715-2-5
click to zoom
3D Models
1-2236715-2 - TE Connectivity - 3D model - Other - 1-2236715-2-5
click to zoom

1-2236715-2 Details

  • Manufacturer Part Number:

    1-2236715-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    40 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    36 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0

1-2236715-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-2236715-2 connector is typically between 0.5-1.5 Nm (7-21 in-lbs), but it's best to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • The 1-2236715-2 connector is designed to meet the requirements of various industries, including automotive and industrial, which often involve high-vibration environments. However, it's essential to evaluate the specific application and consult with TE Connectivity's technical support to ensure the connector meets the required vibration specifications.
  • The 1-2236715-2 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand some level of humidity. However, it's crucial to review the datasheet and consult with TE Connectivity's technical support to ensure the connector meets the specific environmental requirements of your application.
  • The mating cycle life of the 1-2236715-2 connector is typically around 500-1000 cycles, depending on the specific application and environmental conditions. It's recommended to consult TE Connectivity's application notes or contact their technical support for more detailed information.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines and design considerations to ensure proper connector operation and prevent issues such as signal integrity problems or mechanical stress. Consult the datasheet and application notes for more information.
