1-2271888-5 - TE Connectivity

Description: PCB Mount Header, Horizontal, Wire-to-Board, 30 Position, 2 mm [.078 in] Centerline, Fully Shrouded, Tin, Dynamic D-1100D Series

Download 1-2271888-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

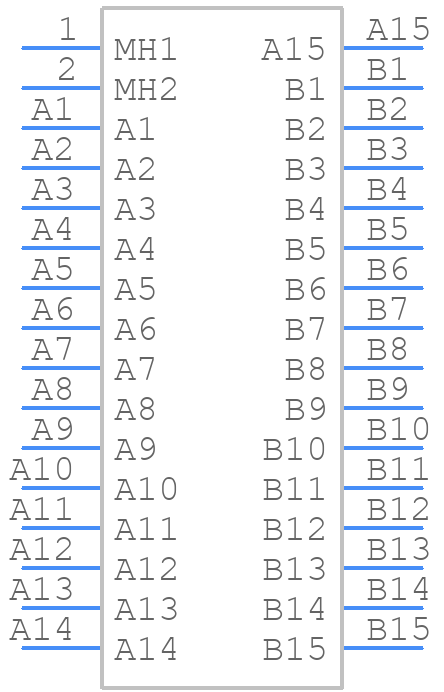

1-2271888-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

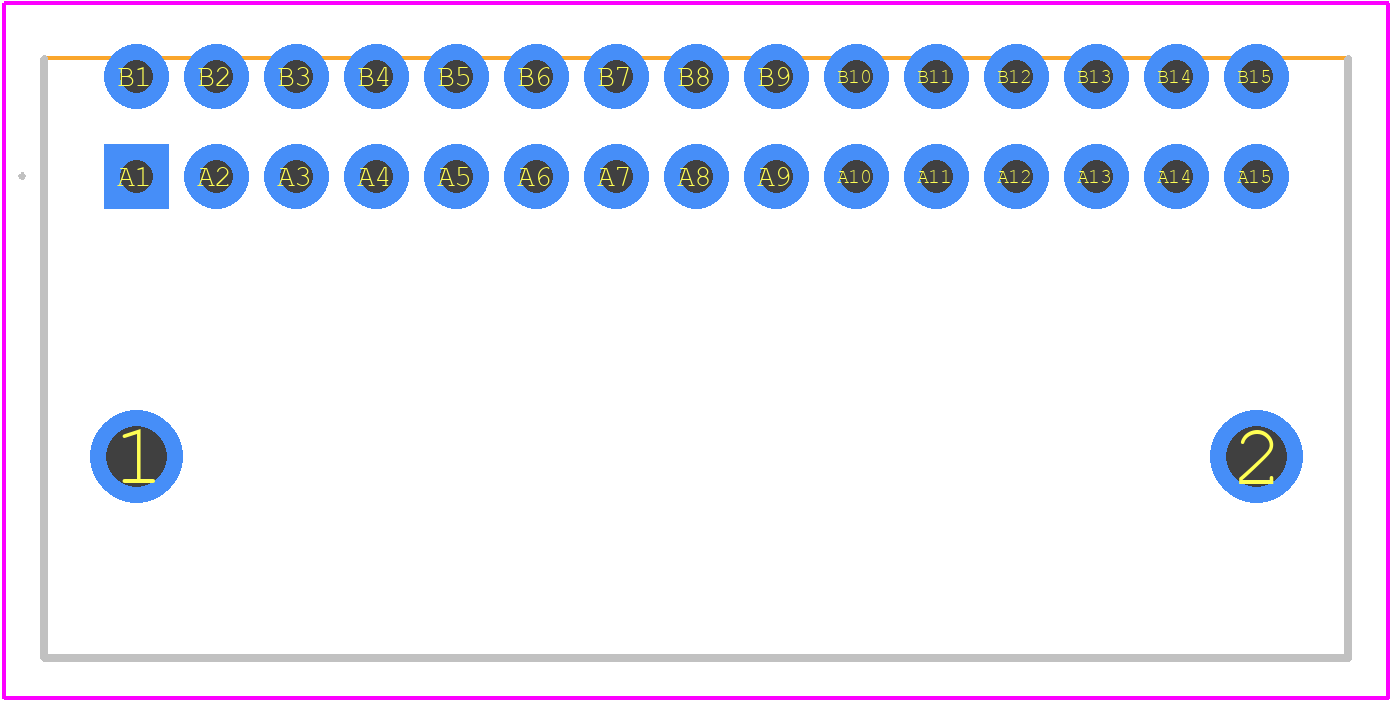

1-2271888-5 - TE Connectivity PCB footprint - Other - Other - 1-2271888-5-3
click to zoom
3D Models
1-2271888-5 - TE Connectivity - 3D model - Other - 1-2271888-5-3
click to zoom

1-2271888-5 Details

  • Manufacturer Part Number:

    1-2271888-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body Breadth:

    0.59 inch

  • Body Depth:

    0.46 inch

  • Body Length:

    1.28 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER/POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    39.37u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    125 V

  • Reference Standard:

    CSA, LR, U

  • Terminal Length:

    0.122 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

1-2271888-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-2271888-5 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's guidelines for the most accurate information.
  • Yes, the 1-2271888-5 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for applications such as industrial automation, transportation, and more.
  • The 1-2271888-5 connector is designed to operate in a wide temperature range of -40°C to 125°C (-40°F to 257°F). It also meets the IEC 60068-2-30 standard for humidity resistance. However, it's essential to consult the datasheet and TE Connectivity's guidelines for specific environmental requirements and any necessary derating.
  • The 1-2271888-5 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
  • The 1-2271888-5 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility before integrating it into your design. Consult TE Connectivity's documentation and contact their technical support for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-2271888-5 Overview

Use the download button to access the 1-2271888-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-227, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
