1-2315530-1 - TE Connectivity

Description: Body Features: Connector & Keying Code A | Configuration Features: Number of Positions 10 | PCB Mount Orientation Vertical | Contact Features: Mating Tab Thickness .4 MM | Mating Tab Thickness .015 INCH | Mating Tab Width .5 MM | Mating Tab Width .02 INCH | Housing Features: Centerline (Pitch) 1.8 MM | Centerline (Pitch) .07 INCH | Mechanical Attachment: Connector Mounting Type Board Mount | Operation/Application: Shielded Yes | Product Type Features: Sealable No | Connector System Wire-to-Board | Usage Con

Download 1-2315530-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

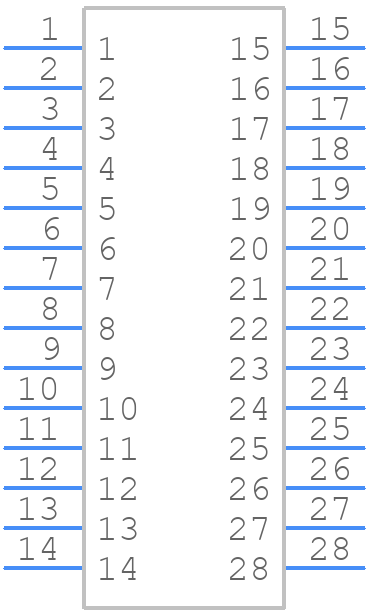

1-2315530-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

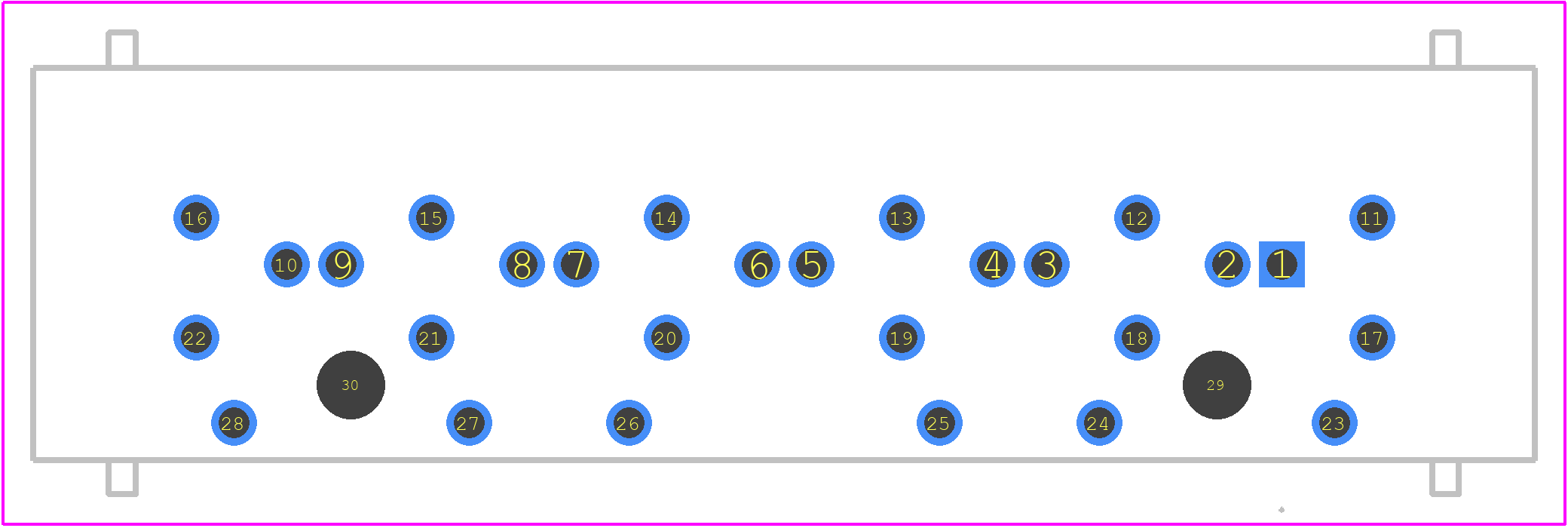

1-2315530-1 - TE Connectivity PCB footprint - Other - Other - 1-2315530-1-3
click to zoom

1-2315530-1 Details

  • Manufacturer Part Number:

    1-2315530-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-2315530-1 Overview

Use the download button to access the 1-2315530-1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-231, or try a keyword search, such as Combination Line Connectors
