The recommended torque value for the 1-2361483-1 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the specific application requirements and TE Connectivity's guidelines for precise torque values.
Yes, the 1-2361483-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B standard for vibration resistance. However, it's crucial to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific application requirements.
The 1-2361483-1 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F). It also meets the IEC 60068-2-30 standard for humidity resistance. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific application requirements.
The 1-2361483-1 connector has a mating cycle life of 500 cycles minimum. However, this value may vary depending on the specific application, usage, and environmental conditions. It's recommended to consult TE Connectivity's documentation and perform thorough testing to determine the connector's performance in the specific use case.
The 1-2361483-1 connector is designed to be compatible with other TE Connectivity products and third-party components that meet the same industry standards. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure compatibility and proper functioning in the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1-2361483-1 Overview

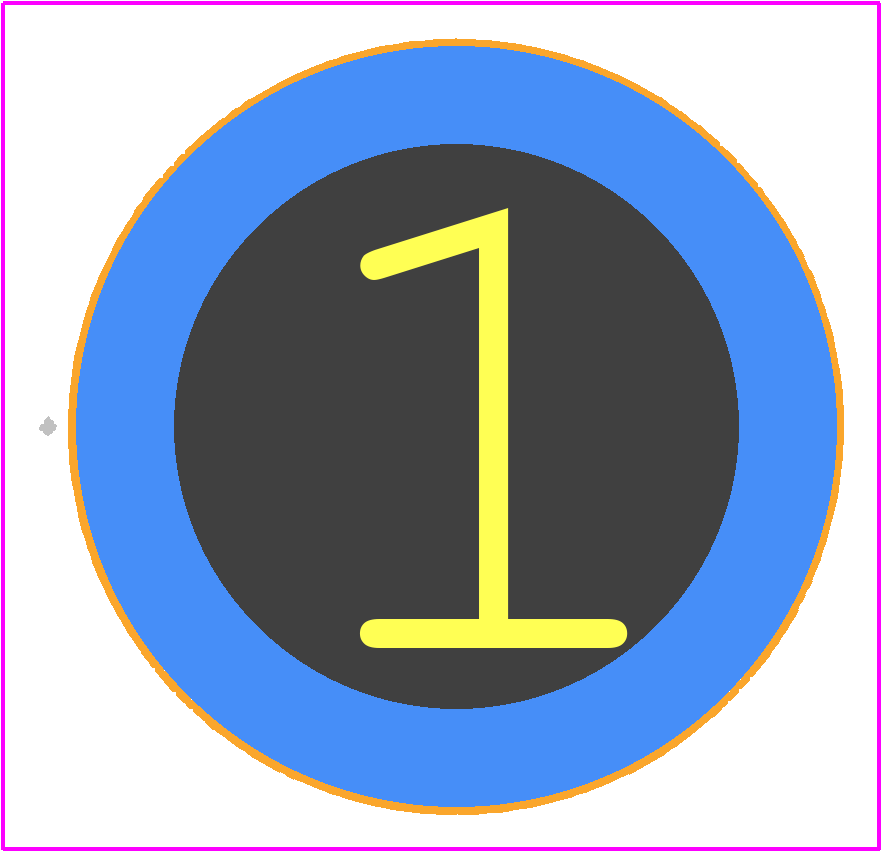

Use the download button to access the 1-2361483-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-236,
or try a keyword search, such as Assembly Items
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
