1-2381578-7 - TE Connectivity

Description: Mini Cool Edge I/O (MCIO), Cable Plug Assembly, Vertical, Cable-to-Board, SFF-TA-1016 Standard, 124 Position, Surface Mount, Internal I/O Connectors

Download 1-2381578-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-2381578-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

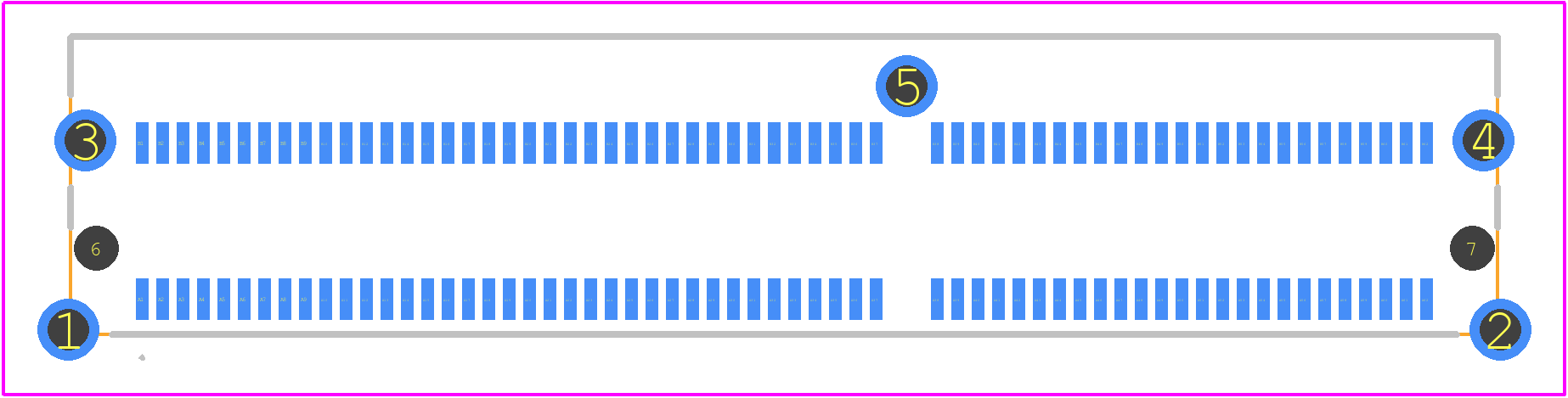

1-2381578-7 - TE Connectivity PCB footprint - Other - Other - 1-2381578-7-1
click to zoom
3D Models
1-2381578-7 - TE Connectivity - 3D model - Other - 1-2381578-7-1
click to zoom

1-2381578-7 Details

  • Manufacturer Part Number:

    1-2381578-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    10 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.1A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1.1 A

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

1-2381578-7 Frequently Asked Questions (FAQs)

  • The recommended torque for the 1-2381578-7 connector is typically specified in the TE Connectivity application notes or installation instructions, but a general guideline is to apply 0.5-1.5 Nm (5-15 in-lbs) of torque.
  • While the datasheet may not explicitly state vibration resistance, TE Connectivity connectors are generally designed to withstand moderate vibration. However, for high-vibration applications, it's recommended to consult with TE Connectivity's technical support or consider using a connector with specific vibration-resistant features.
  • The 1-2381578-7 connector is designed for general-purpose applications, but its environmental resistance may vary. For harsh environments, it's recommended to consult TE Connectivity's environmental specifications or consider using a connector with specific environmental ratings (e.g., IP67 or higher).
  • The mating cycle life of the 1-2381578-7 connector is typically specified in the TE Connectivity product specification or reliability reports. As a general guideline, TE Connectivity connectors are designed for a minimum of 500-1000 mating cycles, but this may vary depending on the specific application and usage.
  • The 1-2381578-7 connector is designed for specific wire gauges and types. While it may be possible to use it with different wire gauges or types, it's recommended to consult TE Connectivity's wire compatibility charts or application notes to ensure reliable connections and avoid potential damage.
