- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1-2834016-6
- Part Number 1-2834016-6
- Manufacturer TE Connectivity
- Pin Count 12
- Part Category Connector
- Package Category Other

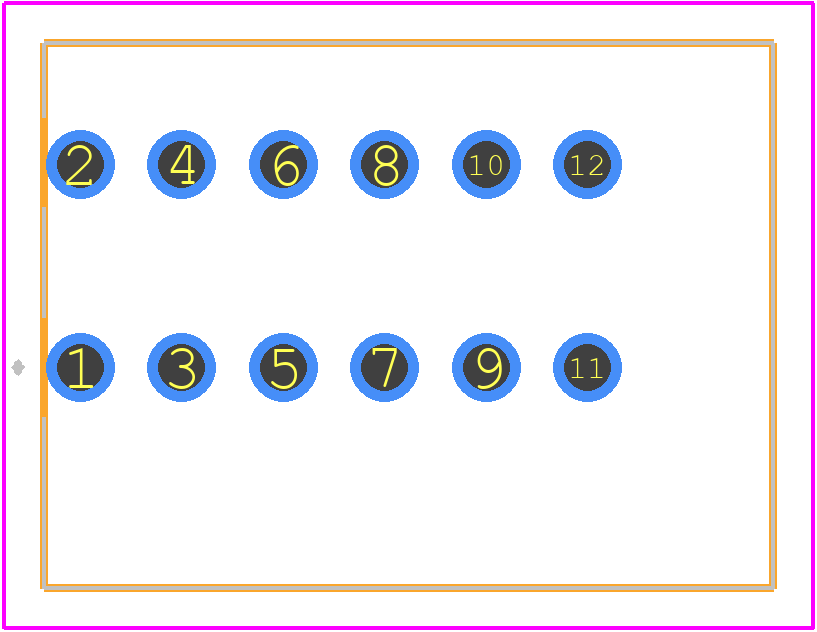

- Footprint Name Other - 1-2834016-6-3
- Released Date Jan 7, 2021
- Last Modified Date Mar 25, 2024 8:00 PM UTC
- Pinout / Pin List Click Here (Member Only)
1-2834016-6 Details
-
Manufacturer Part Number:
1-2834016-6
-
Brand Name:
TE Connectivity
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Factory Lead Time:
37 Weeks, 2 Days
-
Manufacturer:
TE Connectivity
-
Number of Rows:
1
-
Number of Ways:
6
-
Rated Current:
6 A
1-2834016-6 Frequently Asked Questions (FAQs)
-
The recommended torque value for the 1-2834016-6 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
-
Yes, the 1-2834016-6 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1 Class B vibration standard, making it suitable for applications with high vibration levels.
-
The 1-2834016-6 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to ensure the connector is properly sealed and protected from environmental factors to maintain its performance and reliability.
-
The 1-2834016-6 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent connections and disconnections.
-
Yes, the 1-2834016-6 connector is designed to be compatible with other TE Connectivity products, including cable assemblies and PCB connectors. However, it's essential to verify compatibility and consult TE Connectivity's documentation for specific product combinations.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1-2834016-6 Overview
Use the download button to access the 1-2834016-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-283,
or try a keyword search, such as Terminals and Terminal Blocks
