1-2834018-6 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Vertical | Configuration Features: Wire Entry Location Side | Number of Rows 1 | Number of Positions 6 | Wire Entry Angle 90° | Stacking Configuration Side Stackable | Contact Features: Contact Current Rating (Max) 10 AMP | Contact Base Material Copper | Contact Mating Area Plating Material Tin | Dimensions: Wire Size 20 – 14 AWG | Electrical Characteristics: Operating Voltage 300 VAC | Housing Features: Housing Material High Temperature Ny

Download 1-2834018-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-2834018-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

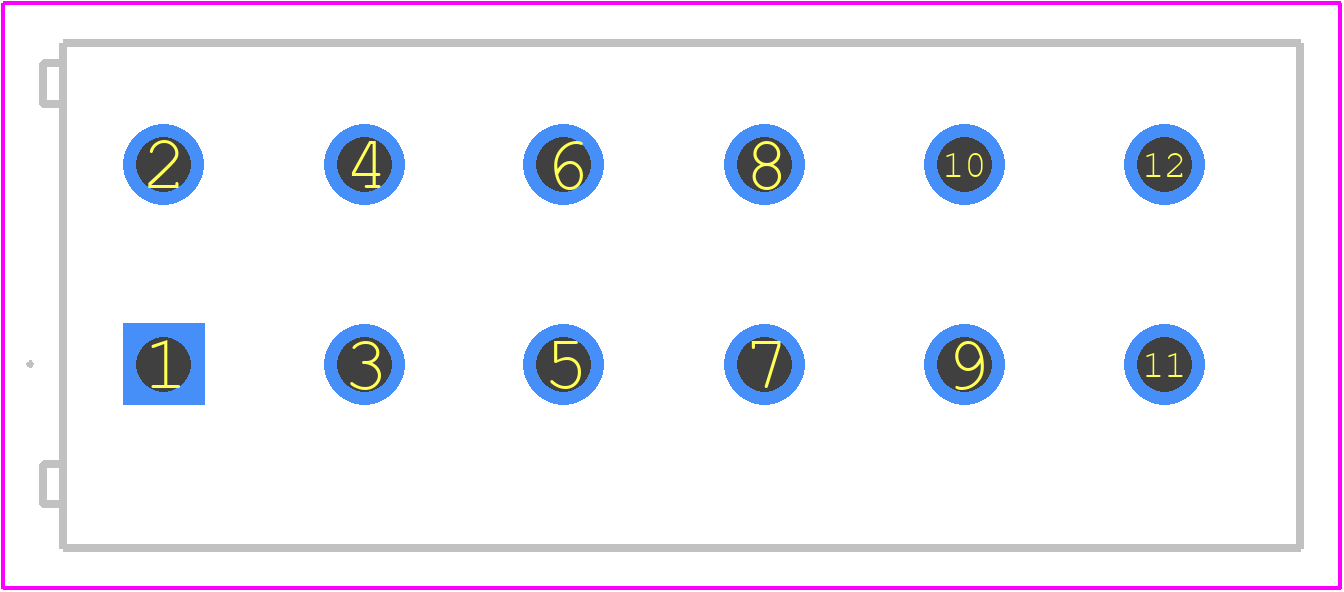

1-2834018-6 - TE Connectivity PCB footprint - Other - Other - 1-2834018-6-1
click to zoom
3D Models
1-2834018-6 - TE Connectivity - 3D model - Other - 1-2834018-6-1
click to zoom

1-2834018-6 Details

  • Manufacturer Part Number:

    1-2834018-6

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Gauge:

    14 AWG

1-2834018-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-2834018-6 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the jack screws.
  • Yes, the 1-2834018-6 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • The 1-2834018-6 connector is rated for operating temperatures from -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH. However, it's recommended to consult the datasheet and TE Connectivity's application notes for specific guidance on using this connector in harsh environments.
  • The 1-2834018-6 connector has a mating cycle life of 500 cycles minimum, with a maximum of 1000 cycles depending on the application and environmental conditions.
  • The 1-2834018-6 connector is designed to be compatible with other TE Connectivity products, such as the 1-2834018-1 and 1-2834018-3 connectors. However, compatibility with third-party components should be verified through testing and validation.
