1-284539-0 - TE Connectivity

Description: PCB Terminal Blocks, Header, Wire-to-Board, 10 Position, .138 in [3.5 mm] Centerline, 1 Row, 30 – 14 AWG Wire Size, .05 – 2 mm² Wire Size, 11 A

Download 1-284539-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-284539-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

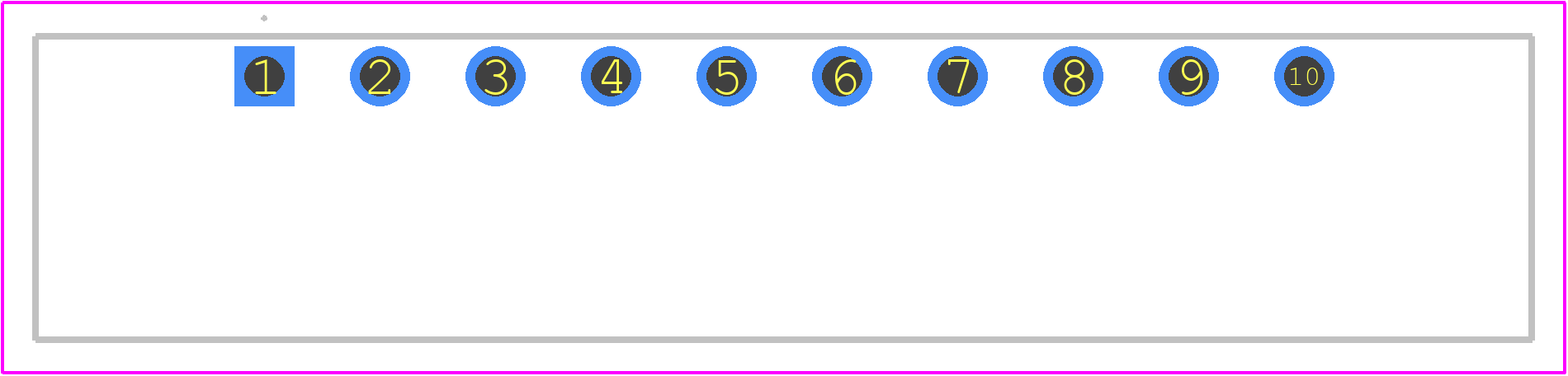

1-284539-0 - TE Connectivity PCB footprint - Other - Other - 1-284539-0-1
click to zoom
3D Models
1-284539-0 - TE Connectivity - 3D model - Other - 1-284539-0-1
click to zoom

1-284539-0 Details

  • Manufacturer Part Number:

    1-284539-0

  • Brand Name:

    Buchanan

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Additional Feature:

    POLARIZED

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    11 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1-284539-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • While the connector is designed for industrial applications, it is not specifically rated for outdoor use. However, it can be used in outdoor environments with proper sealing and protection against moisture and environmental factors.
  • The 1-284539-0 connector is designed for use with AWG 20-24 wires, but it may be possible to use it with other wire sizes. However, this may affect the connector's performance and reliability. Consult with TE Connectivity or a qualified engineer for guidance on using alternative wire sizes.
  • The 1-284539-0 connector is designed to withstand moderate vibration levels, but it may not be suitable for extremely high-vibration applications. Consult with TE Connectivity or a qualified engineer to determine the connector's suitability for your specific application.
  • The 1-284539-0 connector is rated for operation up to 105°C (221°F). While it can tolerate high temperatures, prolonged exposure to extreme temperatures may affect its performance and lifespan. Consult with TE Connectivity or a qualified engineer for guidance on using the connector in high-temperature environments.
