1-316081-2 - TE Connectivity

Description: TE Connectivity D-3000, 5.08mm Pitch, 12 Way, Right Angle Heavy Duty Power Connector, Through Hole

Download 1-316081-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-316081-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

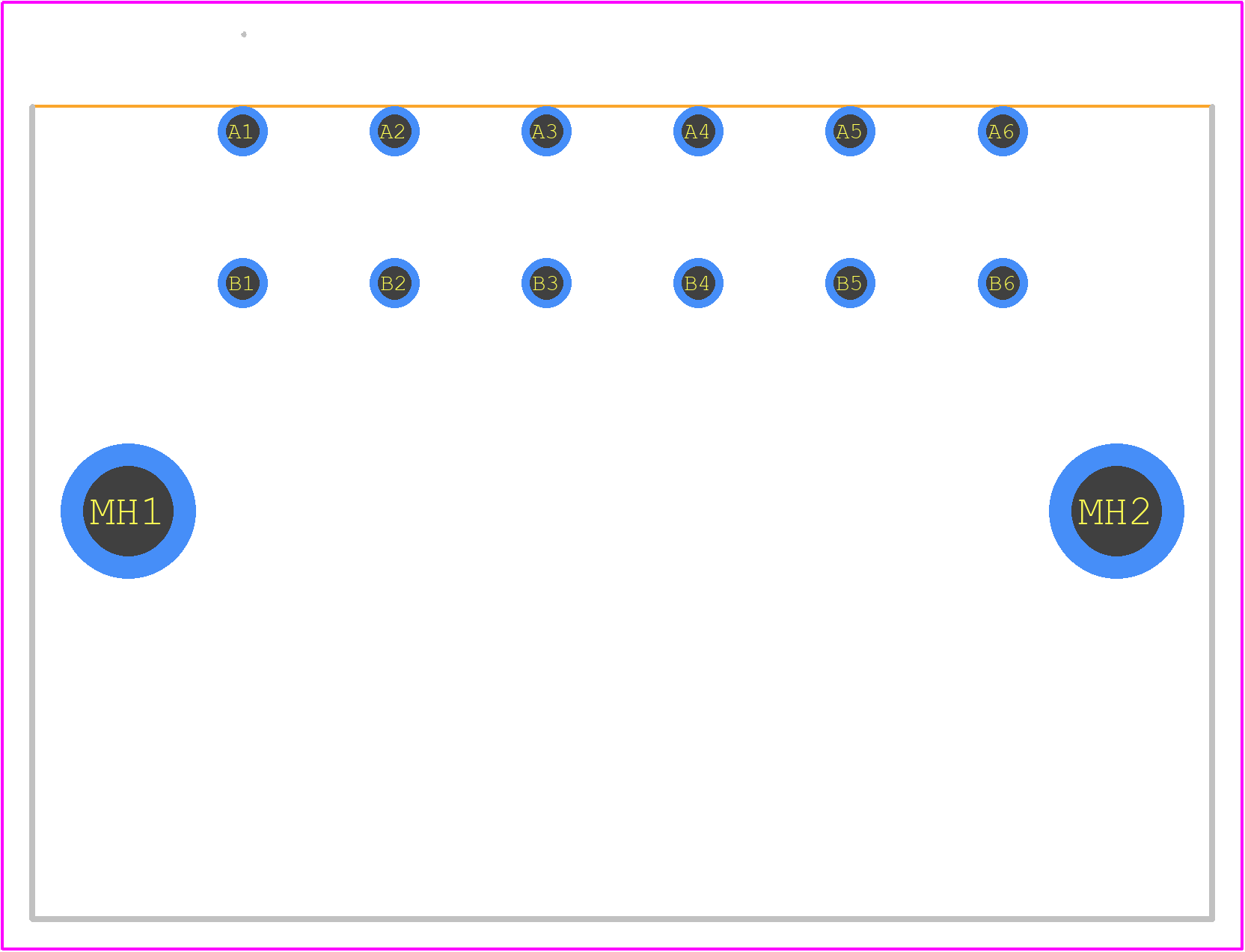

1-316081-2 - TE Connectivity PCB footprint - Other - Other - 1-316081-2-4
click to zoom
3D Models
1-316081-2 - TE Connectivity - 3D model - Other - 1-316081-2-4
click to zoom

1-316081-2 Details

  • Manufacturer Part Number:

    1-316081-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    POLARIZED

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYETHYLENE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    1-917659-6

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1-316081-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
  • Yes, the connector is designed to withstand vibrations, but it's recommended to use additional securing methods, such as cable ties or strain relief, to ensure the connector remains secure.
  • The maximum operating temperature for the connector is 125°C (257°F), but it's recommended to derate the current carrying capacity at higher temperatures.
  • Yes, the connector meets UL standards for safety and performance, but it's recommended to verify the specific certification and compliance requirements for your application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-316081-2 Overview

Use the download button to access the 1-316081-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-316, or try a keyword search, such as Power Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
