- Part Number 1-316131-5
- Manufacturer TE Connectivity
- Pin Count 8
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1-316131-5-1
- Released Date Feb 3, 2022
- Pinout / Pin List Click Here (Member Only)
1-316131-5 Details
-
Manufacturer Part Number:
1-316131-5
-
Brand Name:
AMP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
TE Connectivity
-
YTEOL:
7.7
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
NOT APPLICABLE
1-316131-5 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
-
Yes, the 1-316131-5 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
-
The 1-316131-5 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's performance and longevity.
-
The 1-316131-5 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent connections and disconnections are required.
-
Yes, the 1-316131-5 connector is part of TE Connectivity's modular connector system, which allows for compatibility with other TE products, such as cable assemblies, PCB connectors, and accessories.
Trust Checks
Community Provided
System Verified
Community Approved
1-316131-5 Overview

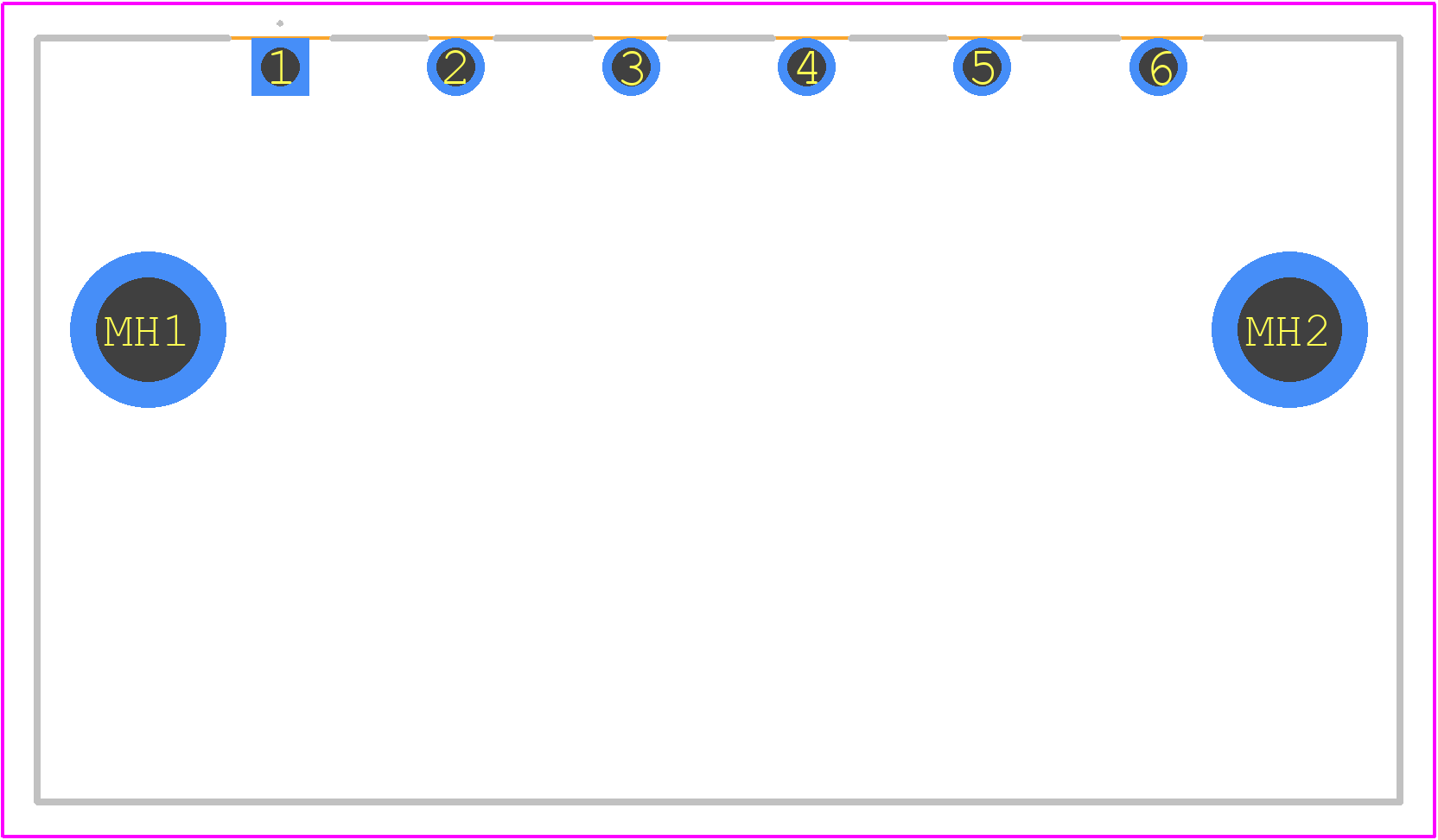

Use the download button to access the 1-316131-5 schematic symbol, PCB footprint, and 3D model.
