Part Image

1-390261-5 - TE Connectivity

Description: 18 way Augat tin plate DIL socket,0.3in

Download 1-390261-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

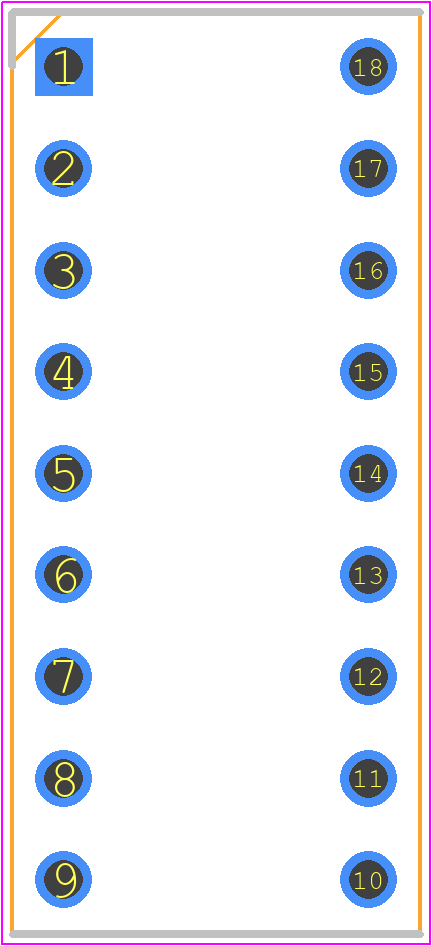

1-390261-5 - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 1-390261-5
click to zoom

1-390261-5 Details

  • Manufacturer Part Number:

    1-390261-5

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    9.51

  • Additional Feature:

    STANDARD: UL 94V-0, LOW PROFILE

  • Body Breadth:

    0.394 inch

  • Body Depth:

    0.201 inch

  • Body Length:

    0.8 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    LEAF

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP18

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Insulation Resistance:

    1000000000 Ω

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    18

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-390261-5 Overview

Use the download button to access the 1-390261-5 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-390, or try a keyword search, such as Sockets and Chip Carriers

Parts related to 1-390261-5

Showing 0 results

1-390261-5 Alternates

Showing results

Image Part Number Model
Part Image 390261-5 TE Connectivity

DIP SOCKET,18 CONTACTS,0.1 TERM PITCH,0.3 ROW SPACING,PC TAIL TERMINAL
