1-5435802-7 - TE Connectivity

Description: DIP Switches / SIP Switches 6 POS SIDE ACT SLD

Download 1-5435802-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

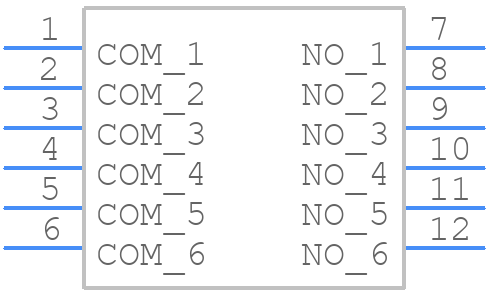

1-5435802-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

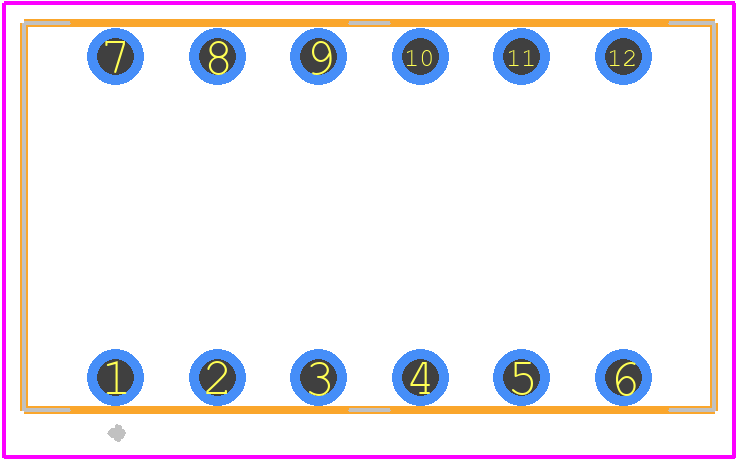

1-5435802-7 - TE Connectivity PCB footprint - Other - Other - 1-5435802-7-2
click to zoom
3D Models
1-5435802-7 - TE Connectivity - 3D model - Other - 1-5435802-7-2
click to zoom

1-5435802-7 Details

  • Manufacturer Part Number:

    1-5435802-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    33 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Actuator Type:

    PIANO TYPE

  • Additional Feature:

    LOW PROFILE

  • Body Height:

    7.36 mm

  • Body Length or Diameter:

    17.27 mm

  • Contact Current(AC)-Max:

    1.5 A

  • Contact Current(DC)-Max:

    1.5 A

  • Contact Voltage(DC)-Max:

    50 V

  • End Contact Material:

    COPPER ALLOY

  • End Contact Plating:

    TIN

  • Housing Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE-RIGHT ANGLE

  • Number of Positions:

    6

  • Number of Switch Sections:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    PIANO DIP SWITCH

  • Terminal Finish:

    Gold (Au)

  • Terminal Length:

    0.14 inch

  • Termination Type:

    WIRE

1-5435802-7 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 1-5435802-7 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1-5435802-7 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, TE Connectivity provides PCB layout guidelines for the 1-5435802-7 connector. It's essential to follow these guidelines to ensure proper mating and to prevent damage to the connector or PCB.
  • The 1-5435802-7 connector is designed to operate in a variety of environments, including humid conditions. However, it's crucial to follow proper sealing and protection methods to prevent moisture ingress and ensure reliable performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-5435802-7 Overview

Use the download button to access the 1-5435802-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-543, or try a keyword search, such as DIP Switches
