1-55323-0 - TE Connectivity

Description: Heavy Duty Power Connectors POWER TAP 10P

Download 1-55323-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-55323-0 - TE Connectivity - PCB symbol
click to zoom

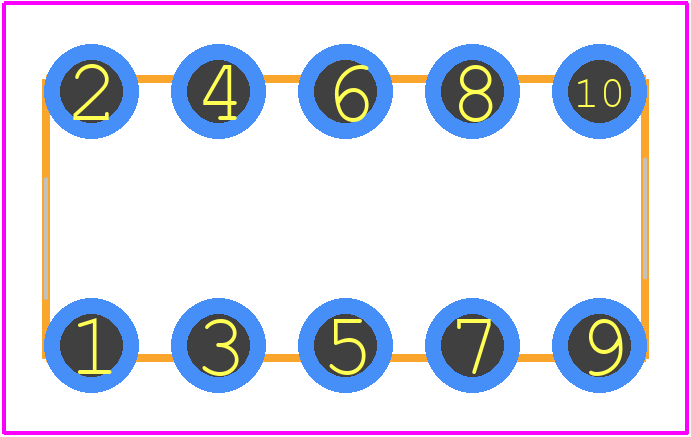

PCB Footprints
1-55323-0 - TE Connectivity PCB footprint - Other - Other - 1-55323-0-1
click to zoom
3D Models
1-55323-0 - TE Connectivity - 3D model - Other - 1-55323-0-1
click to zoom

1-55323-0 Details

  • Manufacturer Part Number:

    1-55323-0

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    21 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.78

  • Number of Ways:

    10

  • Rated Current:

    25 A

  • Safety Approval:

    UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    PCB TERMINAL

1-55323-0 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1-55323-0 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 61373. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1-55323-0 connector has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 1-55323-0 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 1-55323-0 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. However, it's recommended to verify compatibility with third-party components before use to ensure reliable connections and performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-55323-0 Overview

Use the download button to access the 1-55323-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-553, or try a keyword search, such as Terminals and Terminal Blocks
