1-6450140-0 - TE Connectivity

Description: Conn HDR and Receptacle RCP 6Power/24Signal POS 2.54mm Solder ST Thru-Hole 30 Terminal 1 Port Box

Download 1-6450140-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-6450140-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

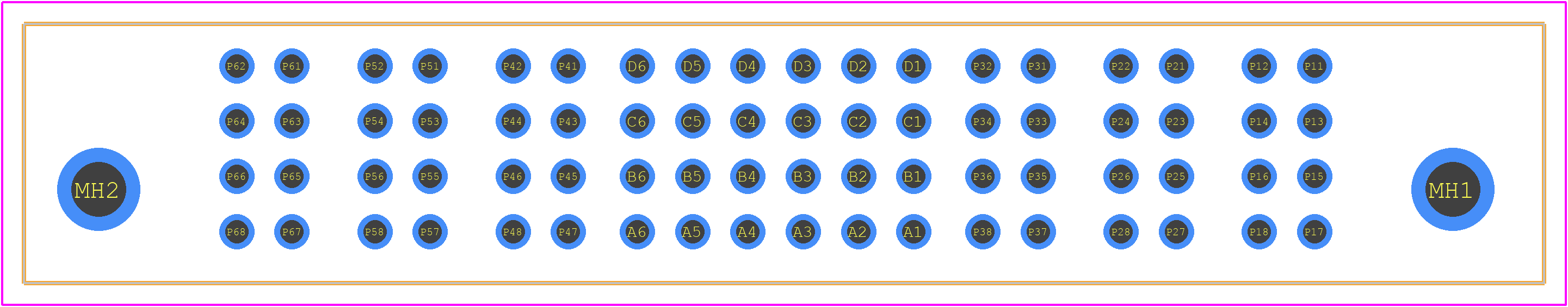

1-6450140-0 - TE Connectivity PCB footprint - Other - Other - 1-6450140-0-1
click to zoom
3D Models
1-6450140-0 - TE Connectivity - 3D model - Other - 1-6450140-0-1
click to zoom

1-6450140-0 Details

  • Manufacturer Part Number:

    1-6450140-0

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.47 inch

  • Body Depth:

    0.5 inch

  • Body Length:

    2.75 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S24P6

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    HYBRID

  • DIN Conformance:

    NO

  • Durability:

    250 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    42A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    BOARDLOCK

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    42 A

  • Rated Voltage:

    200 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.135 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

1-6450140-0 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1-6450140-0 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and securement to prevent connector damage or disconnection.
  • The operating temperature range for the 1-6450140-0 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The 1-6450140-0 connector has a sealed design that provides some level of protection against moisture and chemicals. However, it's not designed for immersion in liquids or exposure to highly corrosive substances. If you need a connector for use in extremely harsh environments, you may need to consider a different product or add additional protection measures.
  • While the 1-6450140-0 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, you should consult with TE Connectivity or a qualified engineer to ensure that the connector can accommodate the wire size you need to use, and that the connection will be reliable and meet your application's requirements.
