1-6450872-6 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

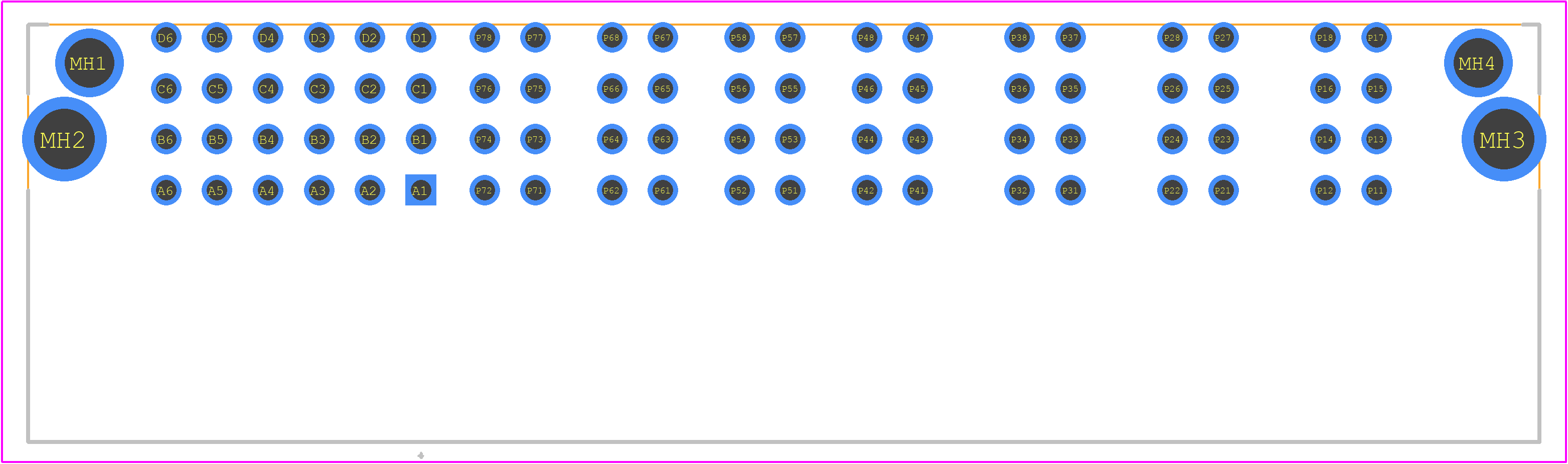

1-6450872-6 - TE Connectivity PCB footprint - Other - Other - 1-6450872-6-3

click to zoom

3D Models

1-6450872-6 - TE Connectivity - 3D model - Other - 1-6450872-6-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-6450872-6
Part Number 1-6450872-6
Manufacturer TE Connectivity
Pin Count 84
Part Category Connector
Package Category Other
Footprint Name Other - 1-6450872-6-3
Released Date Nov 4, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

1-6450872-6 Details

Manufacturer Part Number:
1-6450872-6
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
8 Weeks, 5 Days
Manufacturer:
TE Connectivity
Board Mounting Option:
SPLIT BOARD LOCK
Body Breadth:
0.47 inch
Body Depth:
0.82 inch
Body Length:
2.965 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
BOARD CONNECTOR
Contact Arrangement:
S24P7
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Contact Resistance:
20 mΩ
Contact Style:
HYBRID
Dielectric Withstanding Voltage:
2500VDC V
Durability:
500 Cycles
Filter Feature:
NO
Insulation Resistance:
500000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYETHYLENE
Mixed Contacts:
YES
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Reference Standard:
UL
Terminal Length:
0.135 inch
Termination Type:
PRESS FIT
Total Number of Contacts:
31

1-6450872-6 Frequently Asked Questions (FAQs)

The recommended torque value for the 1-6450872-6 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the jack screws.
Yes, the 1-6450872-6 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
Yes, the 1-6450872-6 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and meeting IP67 ingress protection standards.
The 1-6450872-6 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent connections and disconnections are required.
Yes, the 1-6450872-6 connector is part of the TE Connectivity's MATE-AXIAL product family, which offers a range of compatible connectors and accessories for various applications.

Trust Checks

Community Provided

System Verified

Community Approved

1-6450872-6 Overview

Use the download button to access the 1-6450872-6 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-645, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
