- Part Number 1-776087-2
- Manufacturer TE Connectivity
- Pin Count 25
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1-776087-2-1
- Released Date Jan 25, 2021
- Last Modified Date Dec 15, 2024 9:33 PM UTC
- Pinout / Pin List Click Here (Member Only)
1-776087-2 Details
-
Manufacturer Part Number:
1-776087-2
-
Brand Name:
AMP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
TE Connectivity
-
Additional Feature:
POLARIZED
-
Board Mounting Option:
BOARD LOCK
1-776087-2 Frequently Asked Questions (FAQs)
-
The recommended torque value for the 1-776087-2 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific torque recommendations tailored to your application.
-
While the 1-776087-2 connector is designed to be robust, it's crucial to assess the specific vibration requirements of your application. TE Connectivity recommends consulting their vibration testing data and performing additional testing to ensure the connector meets your application's vibration requirements.
-
The 1-776087-2 connector is designed to operate within a temperature range of -40°C to 125°C. However, for high-temperature or high-humidity applications, it's recommended to consult TE Connectivity's environmental testing data and consider additional sealing or protective measures to ensure the connector's reliability.
-
The 1-776087-2 connector is designed for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on factors such as connector handling, cleaning, and application conditions. It's recommended to consult TE Connectivity's application notes for more information.
-
Yes, TE Connectivity recommends following their cleaning and maintenance guidelines to ensure the connector's reliability. This includes using approved cleaning solvents, avoiding abrasive materials, and following proper handling procedures to prevent damage.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1-776087-2 Overview

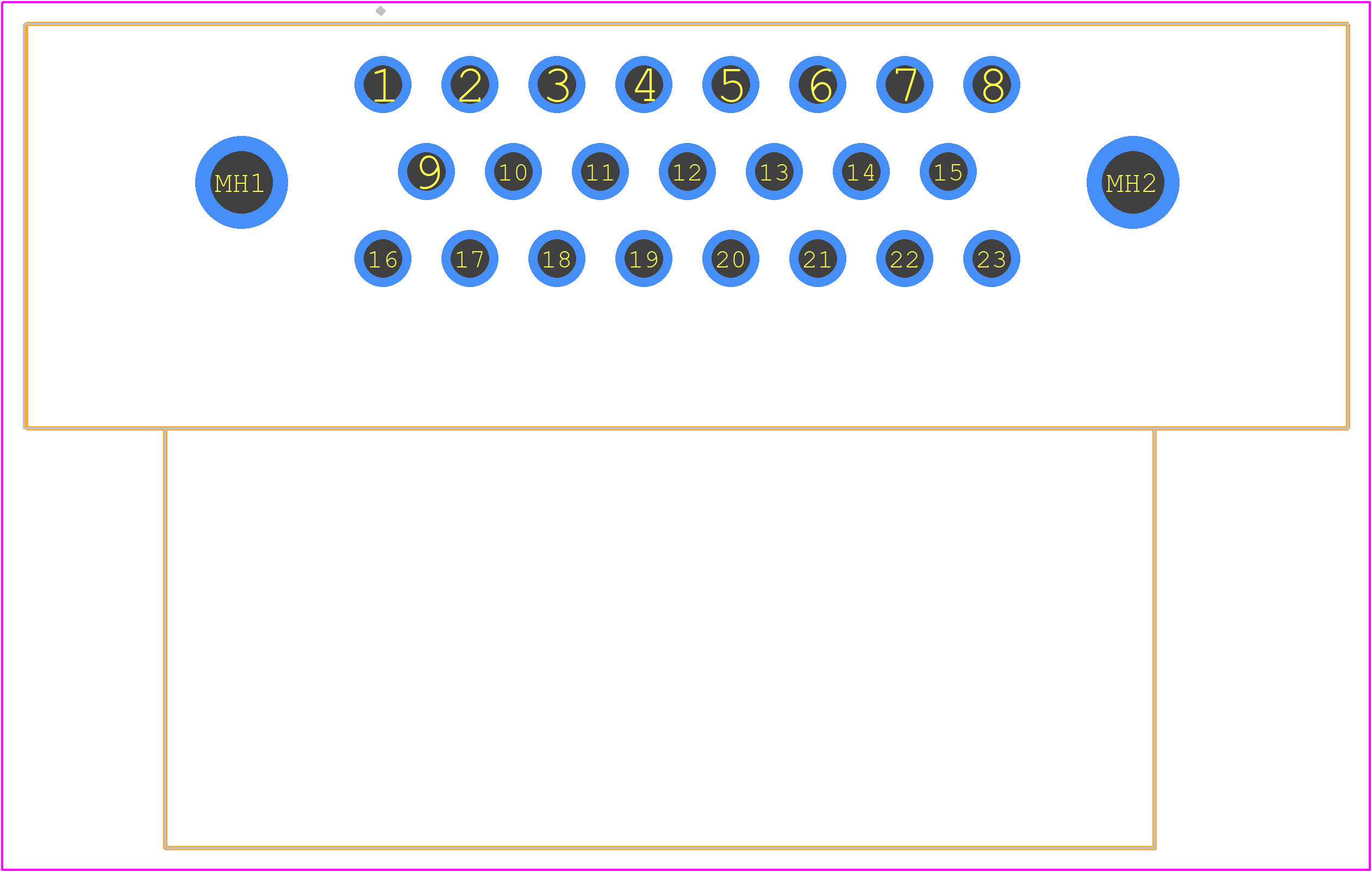

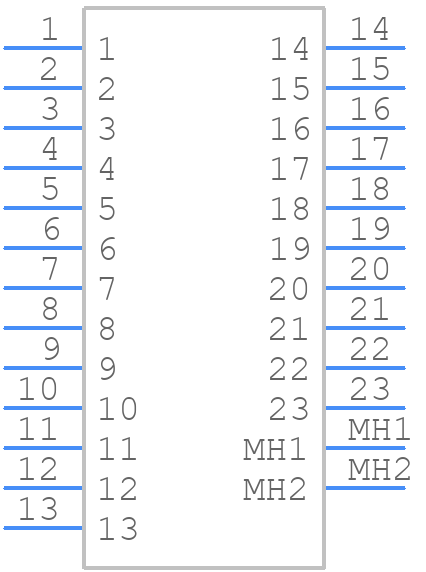

Use the download button to access the 1-776087-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-776,
or try a keyword search, such as Combination Line Connectors
