1-776180-1 - TE Connectivity

Description: Header Rigth Angle 35 way Pin AmpSeal

Download 1-776180-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

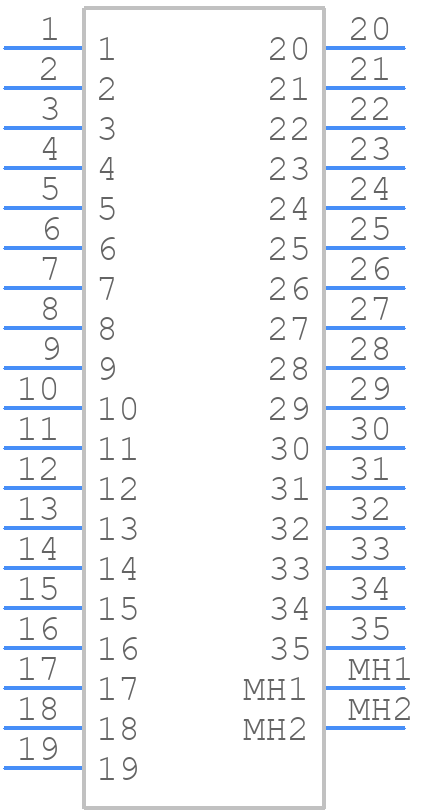

1-776180-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

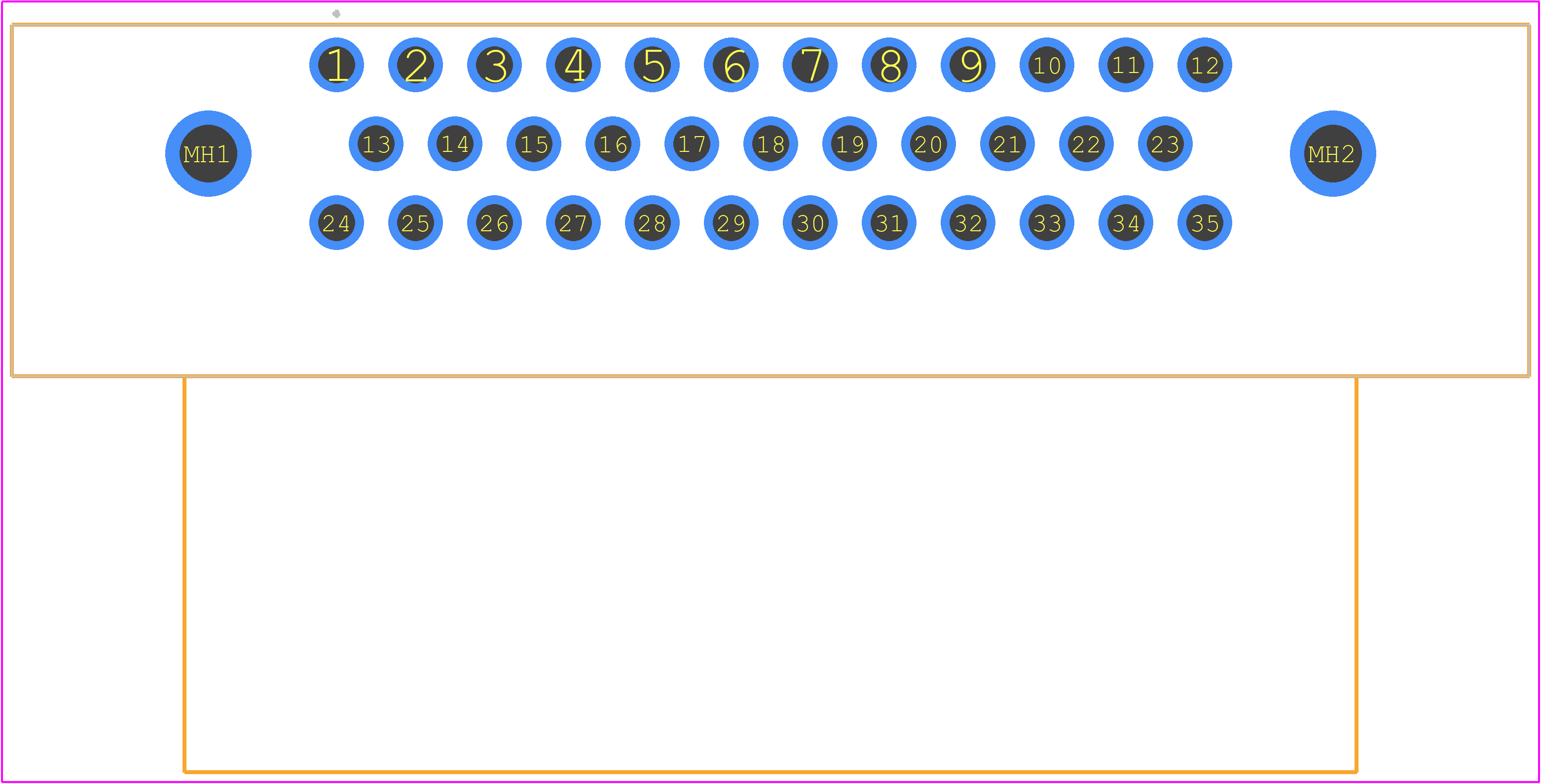

1-776180-1 - TE Connectivity PCB footprint - Other - Other - 1-776180-1-1
click to zoom
3D Models
1-776180-1 - TE Connectivity - 3D model - Other - 1-776180-1-1
click to zoom

1-776180-1 Details

  • Manufacturer Part Number:

    1-776180-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.44

  • Additional Feature:

    POLARIZED

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.878 inch

  • Body Depth:

    1.594 inch

  • Body Length:

    3.433 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    17A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    17 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    35

  • UL Flammability Code:

    94V-0

1-776180-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-776180-1 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific torque recommendations tailored to your application.
  • While the 1-776180-1 connector is designed to be robust, it's crucial to assess the specific vibration requirements of your application. TE Connectivity recommends consulting their vibration testing data and performing additional testing to ensure the connector meets your application's vibration requirements.
  • The 1-776180-1 connector is designed to operate within a temperature range of -40°C to 125°C. However, for high-temperature or high-humidity applications, it's recommended to consult TE Connectivity's environmental testing data and consider additional testing to ensure the connector's performance and reliability.
  • The 1-776180-1 connector is designed for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on factors such as connector handling, cleaning, and application conditions. It's recommended to consult TE Connectivity's application notes for more information.
  • Yes, TE Connectivity recommends following their cleaning and maintenance guidelines to ensure the connector's performance and reliability. This includes using approved cleaning solvents, avoiding abrasive materials, and following proper handling procedures.
