1-776228-4 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 23 Position, 4 mm [.157 in] Centerline, Fully Shrouded, Gold, Through Hole - Solder, Sealable, AMPSEAL

Download 1-776228-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

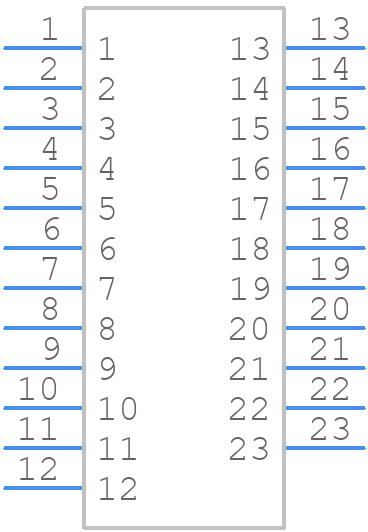

Symbol
1-776228-4 - TE Connectivity - PCB symbol
click to zoom

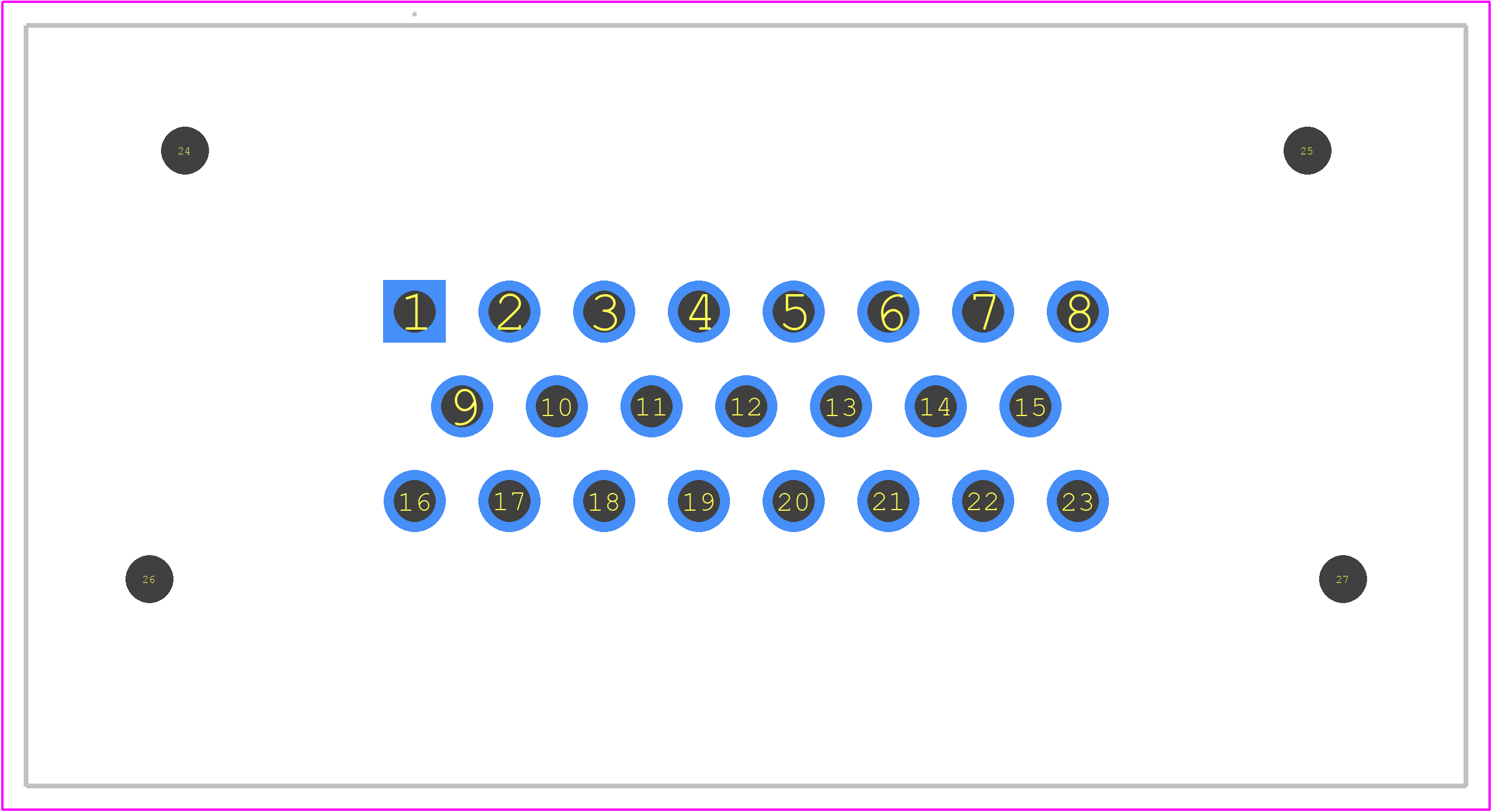

PCB Footprints
1-776228-4 - TE Connectivity PCB footprint - Other - Other - 1-776228-4-1
click to zoom
3D Models
1-776228-4 - TE Connectivity - 3D model - Other - 1-776228-4-1
click to zoom

1-776228-4 Details

  • Manufacturer Part Number:

    1-776228-4

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    LATCHED

  • Body Breadth:

    1.264 inch

  • Body Length:

    2.394 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    17A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    17 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    23

  • UL Flammability Code:

    94V-0

1-776228-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-776228-4 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow the recommended torque value to ensure proper mating and prevent damage to the connector.
  • Yes, the 1-776228-4 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high vibration, such as in industrial, automotive, or aerospace environments.
  • Yes, the 1-776228-4 connector is designed to operate in harsh environments. It has a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand high humidity. However, it's essential to follow the recommended operating conditions and environmental specifications to ensure reliable performance.
  • Yes, the 1-776228-4 connector is designed to be compatible with other TE Connectivity products, including cable assemblies, connectors, and accessories. It's essential to verify compatibility before integrating the connector into your design.
  • The typical lead time for the 1-776228-4 connector can vary depending on the supplier, quantity, and location. However, typical lead times range from 2-6 weeks. It's essential to check with your supplier or distributor for the most up-to-date lead time information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-776228-4 Overview

Use the download button to access the 1-776228-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-776, or try a keyword search, such as Combination Line Connectors
