1-776267-1 - TE Connectivity

Description: AMP - TE CONNECTIVITY - 1-776267-1 - CONNECTOR, HEADER, THT, R/A, 4MM, 14WAY

Download 1-776267-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-776267-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

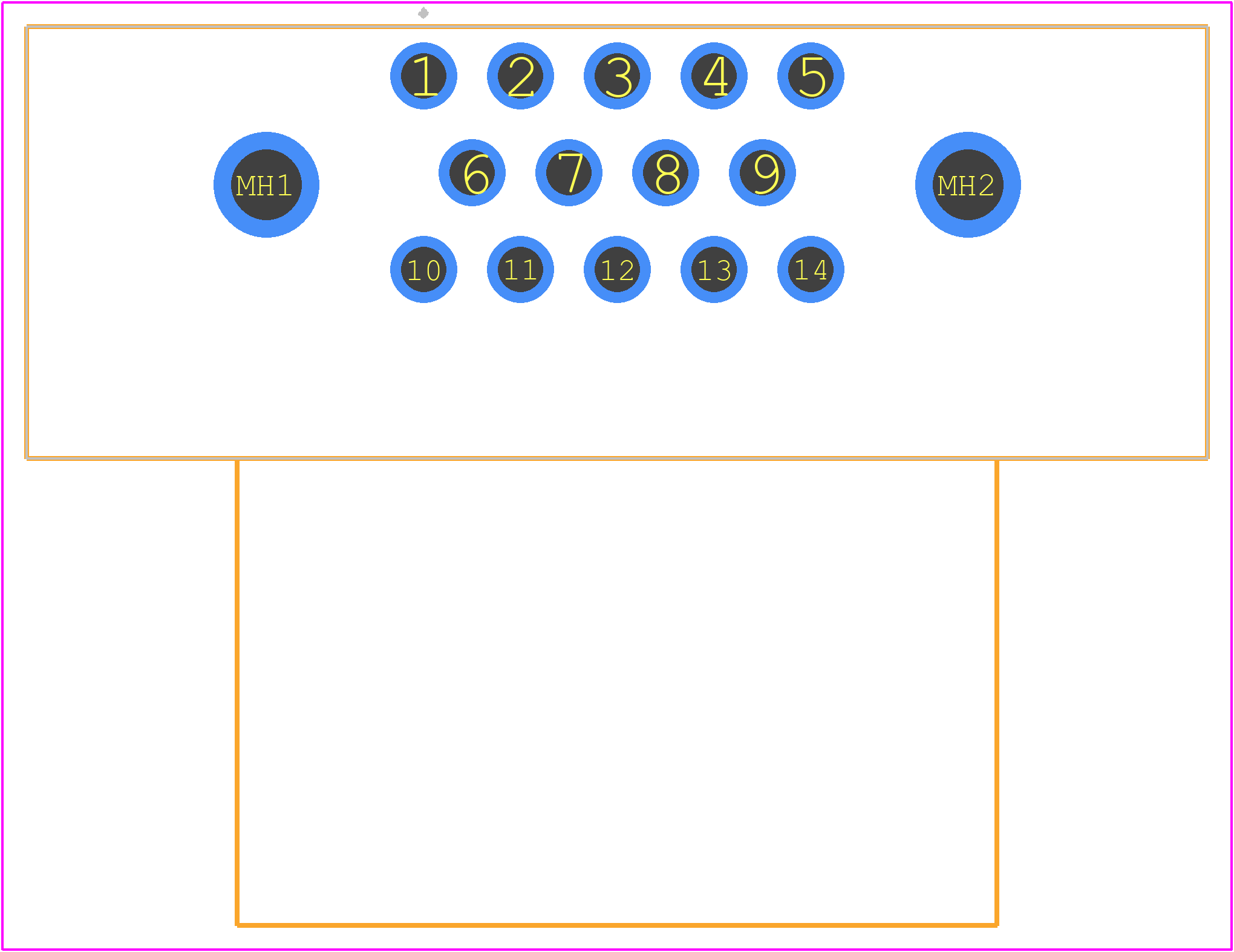

1-776267-1 - TE Connectivity PCB footprint - Other - Other - 1-776267-1-2
click to zoom
3D Models
1-776267-1 - TE Connectivity - 3D model - Other - 1-776267-1-2
click to zoom

1-776267-1 Details

  • Manufacturer Part Number:

    1-776267-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.44

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    1.498 inch

  • Body Depth:

    1.492 inch

  • Body Length:

    1.921 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    17A

  • Mating Contact Pitch:

    0.157 inch

  • Mating Contact Row Spacing:

    0.16 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    3

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    4.064 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    20u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    17 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

1-776267-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-776267-1 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance on torque values for your specific application.
  • While the 1-776267-1 connector is designed to be robust, it's essential to evaluate its suitability for high-vibration environments on a case-by-case basis. TE Connectivity provides vibration testing data, but it's recommended to consult with their technical support or perform custom testing to ensure the connector meets your specific application requirements.
  • The 1-776267-1 connector is designed to operate within a specific temperature range (-40°C to 125°C) and humidity level. However, for harsh environment applications, it's crucial to consult TE Connectivity's environmental testing data and application notes to ensure the connector meets your specific requirements. You may also need to consider additional sealing or protective measures.
  • The mating cycle life of the 1-776267-1 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions. However, it's recommended to consult TE Connectivity's technical support or application notes for more detailed information on mating cycle life and how to optimize connector performance.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines and design considerations to ensure optimal performance and reliability. This includes factors such as trace routing, pad design, and component placement. Consult TE Connectivity's application notes and technical support for specific guidance on PCB design and layout.
