1-776276-2 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

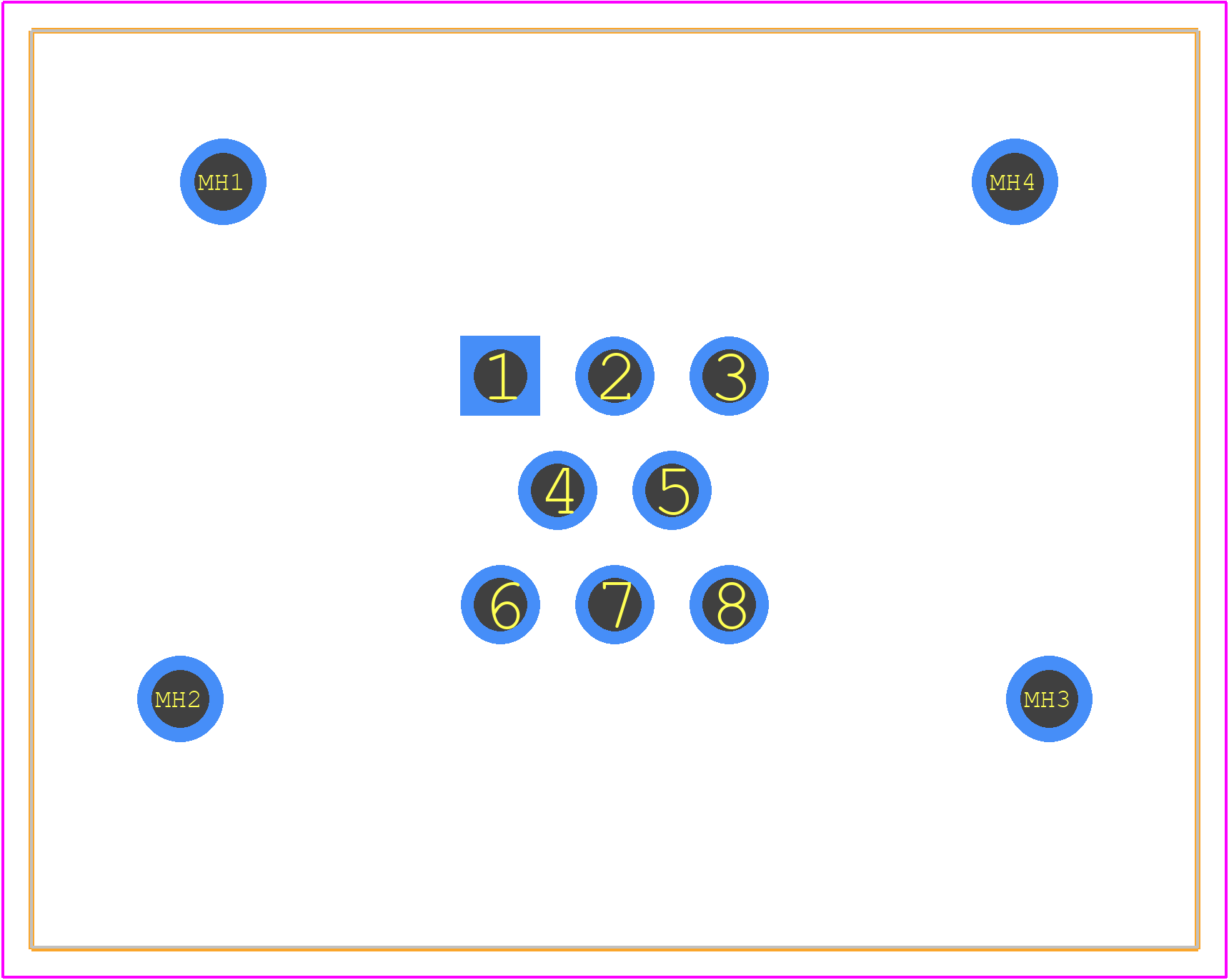

1-776276-2 - TE Connectivity PCB footprint - Other - Other - 1-776276-2-3

click to zoom

3D Models

1-776276-2 - TE Connectivity - 3D model - Other - 1-776276-2-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-776276-2
Part Number 1-776276-2
Manufacturer TE Connectivity
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - 1-776276-2-3
Released Date Jul 3, 2019
Last Modified Date Dec 15, 2024 9:33 PM UTC
Pinout / Pin List Click Here (Member Only)

1-776276-2 Details

Manufacturer Part Number:
1-776276-2
Brand Name:
TE Connectivity
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
13 Weeks
Manufacturer:
TE Connectivity
YTEOL:
8
Additional Feature:
PANEL MOUNTABLE
Body Breadth:
1.264 inch
Body Length:
1.606 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Finish Termination:
Gold (Au)
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mains Connector Rating:
17A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization Key:
POLARIZED
Rated Current (Signal):
17 A
Reference Standard:
UL
Terminal Pitch:
4 mm
Termination Type:
SOLDER
Total Number of Contacts:
8
UL Flammability Code:
94V-0

1-776276-2 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
Yes, the 1-776276-2 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
The 1-776276-2 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F) and is resistant to many chemicals, including fuels, oils, and cleaning agents. However, it's essential to consult the datasheet and manufacturer's guidelines for specific environmental requirements.
Yes, the 1-776276-2 connector is designed to be compatible with other TE Connectivity products and can be used with third-party components, but it's essential to ensure compatibility and follow proper assembly and installation procedures.
The 1-776276-2 connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. It is suitable for outdoor or wet environments, but ensure proper sealing and installation to maintain the IP rating.

Trust Checks

Expert Contribution

System Verified

Community Approved

1-776276-2 Overview

Use the download button to access the 1-776276-2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-776, or try a keyword search, such as Headers and Edge Type Connectors
