1-794680-8 - TE Connectivity

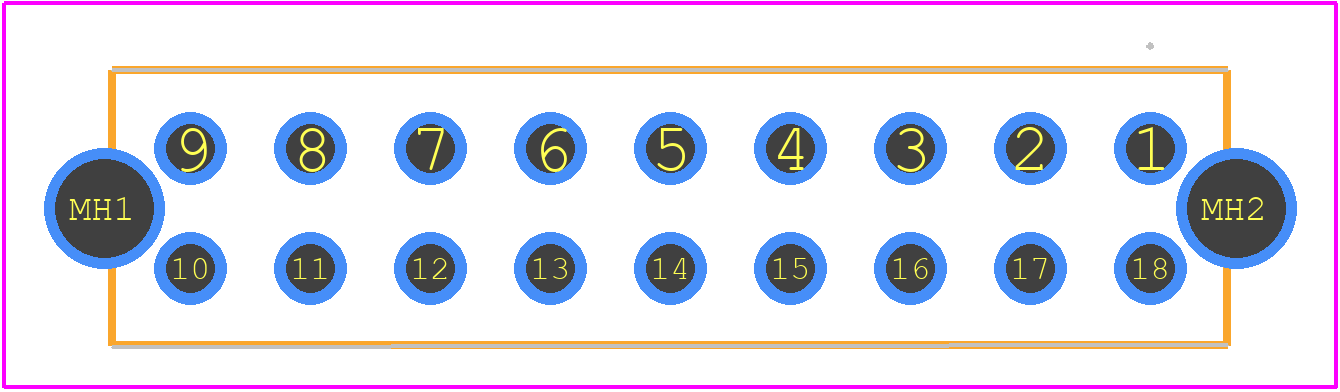

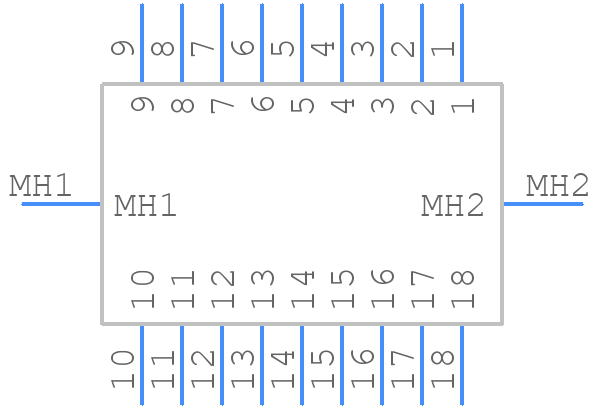

1-794680-8 Details

• Manufacturer Part Number:

  1-794680-8

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.341 inch

• Body Depth:

  0.364 inch

• Body Length:

  1.22 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  COMBINATION LINE CONNECTOR

• Contact Finish Mating:

  TIN

• Contact Finish Termination:

  TIN

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1500VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  6.672 N

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.118 inch

• Mating Contact Row Spacing:

  0.118 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.9972 mm

• Plating Thickness:

  100u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  5 A

• Reference Standard:

  CSA, UL

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  2.9972 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  18

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .695 N
