- Part Number 1-796329-1
- Manufacturer TE Connectivity
- Pin Count 57
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1-796329-1-1
- Released Date Apr 17, 2022
- Last Modified Date Dec 15, 2024 9:33 PM UTC
- Pinout / Pin List Click Here (Member Only)
1-796329-1 Details
-
Manufacturer Part Number:
1-796329-1
-
Brand Name:
AMP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.20
-
Factory Lead Time:
7 Weeks
-
Manufacturer:
TE Connectivity
-
YTEOL:
7.87
-
Backshell Type:
SOLID
1-796329-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the 1-796329-1 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the specific application requirements and TE Connectivity's guidelines for precise torque values.
-
Yes, the 1-796329-1 connector is designed to withstand high-vibration environments. Its rugged construction and secure locking mechanism ensure reliable connections even in harsh conditions.
-
The 1-796329-1 connector is rated for operating temperatures between -40°C to 125°C (-40°F to 257°F). However, it's crucial to consider the specific application requirements and potential thermal stress on the connector.
-
Yes, the 1-796329-1 connector is designed to be compatible with other TE Connectivity products, including cables, backshells, and accessories. However, it's essential to verify compatibility before integrating the connector into your system.
-
The 1-796329-1 connector has an IP67 rating, which means it provides protection against solid objects and water immersion up to 1 meter (3.3 feet) for 30 minutes.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1-796329-1 Overview

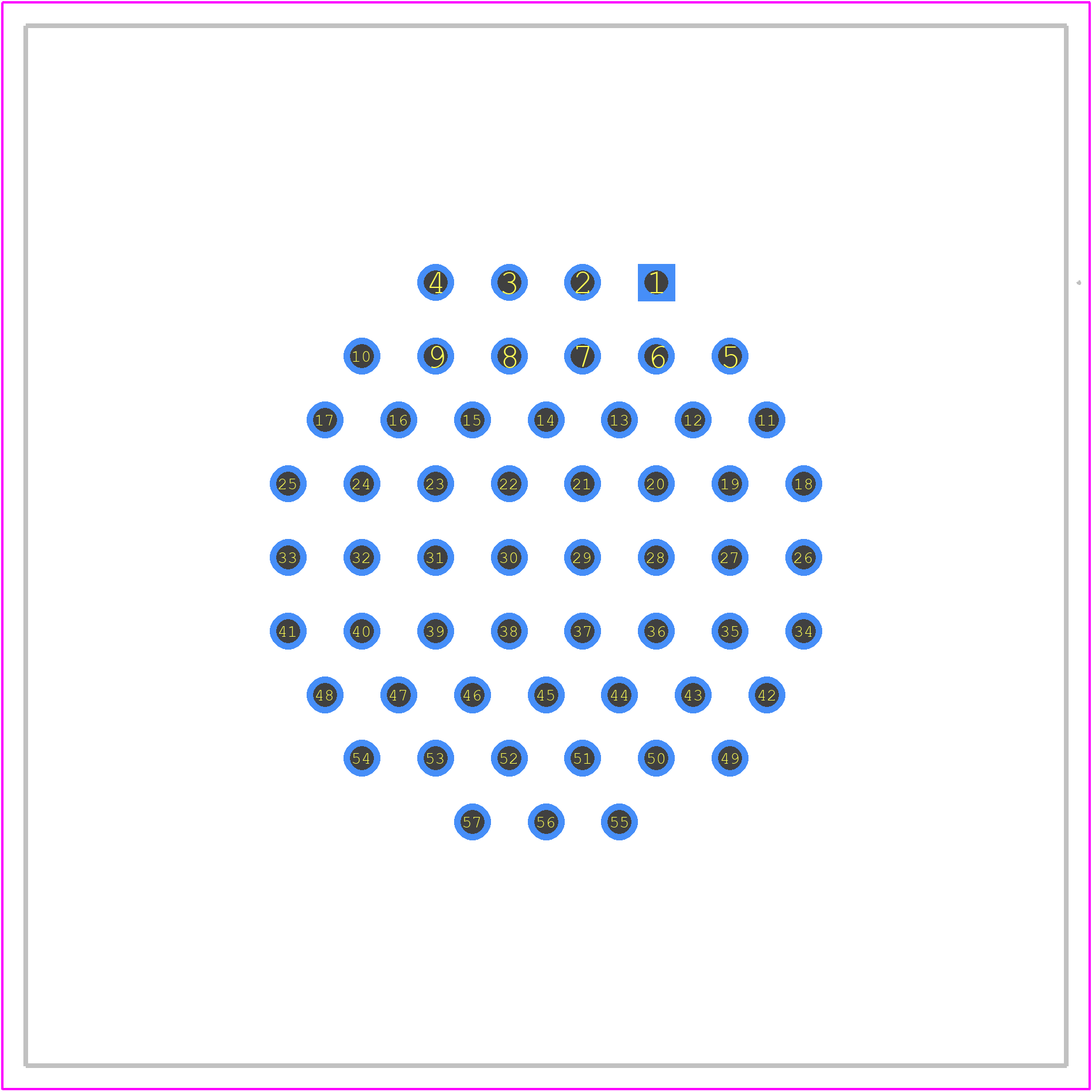

Use the download button to access the 1-796329-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-796,
or try a keyword search, such as Other Circular Connectors
