1-796375-2 - TE Connectivity

Description: 9 Position, Connector Assembly, 250 VDC, Wire-to-Board / Wire-to-Panel, Printed Circuit Board, Receptacle, Pin, AMP Circular Plastic Connectors

Download 1-796375-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-796375-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

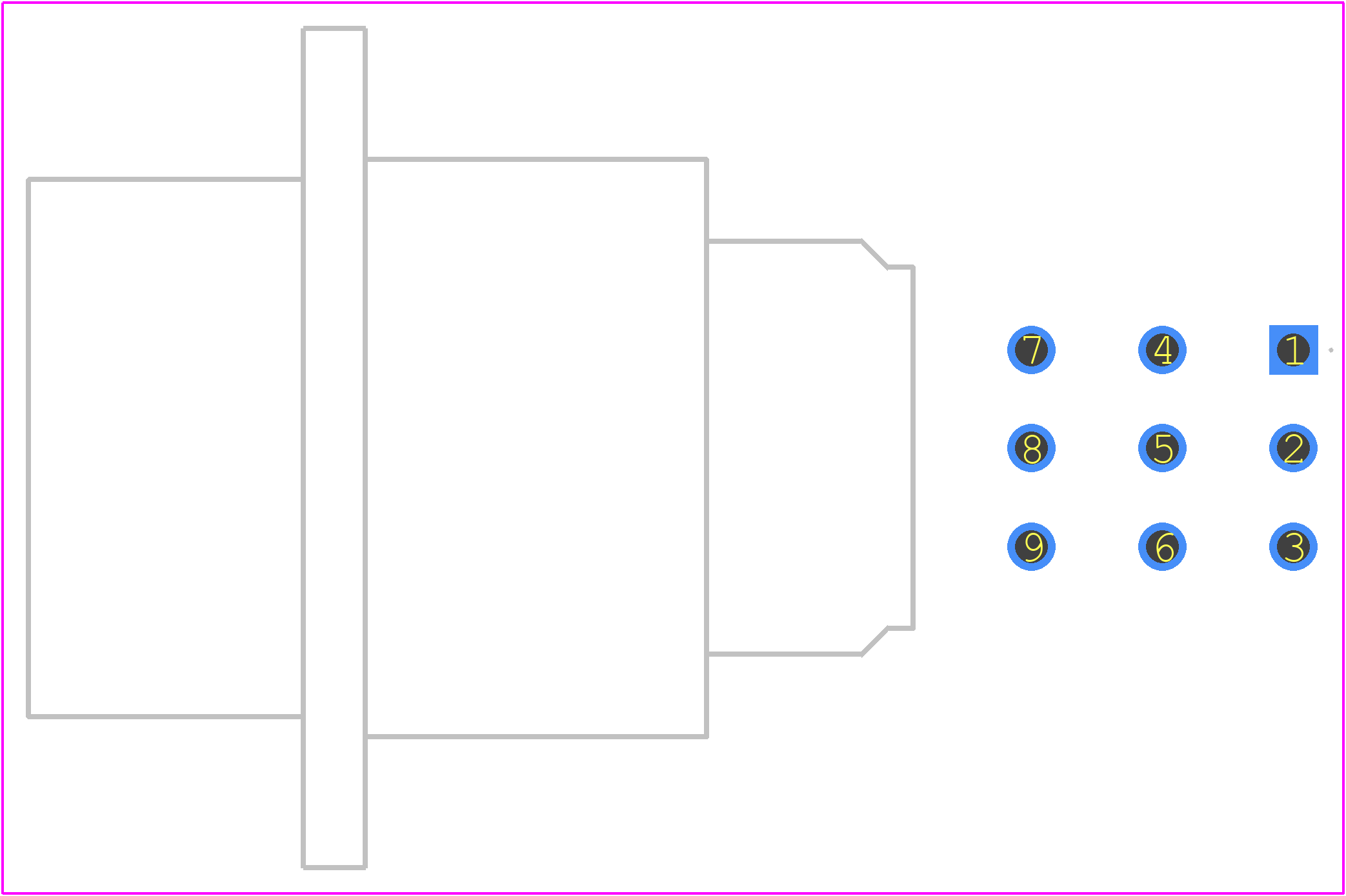

1-796375-2 - TE Connectivity PCB footprint - Other - Other - 1-796375-2-1
click to zoom
3D Models
1-796375-2 - TE Connectivity - 3D model - Other - 1-796375-2-1
click to zoom

1-796375-2 Details

  • Manufacturer Part Number:

    1-796375-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Shell Size:

    13

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

1-796375-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 1-796375-2 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
  • The 1-796375-2 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F) and is resistant to many chemicals, including fuels, oils, and cleaning agents. However, it's essential to consult the datasheet and manufacturer's guidelines for specific environmental requirements.
  • The maximum current rating for the 1-796375-2 connector is 3A per contact, but it's essential to consult the datasheet and manufacturer's guidelines for specific application requirements.
  • The 1-796375-2 connector is designed for signal transmission and is suitable for high-speed data transmission applications, but the specific data transmission rate and frequency depend on the application and system requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-796375-2 Overview

Use the download button to access the 1-796375-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-796, or try a keyword search, such as Other Circular Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
