1-796409-1 - TE Connectivity

Description: Standard Circular Connector CIRC REC PIN 23-37

Download 1-796409-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

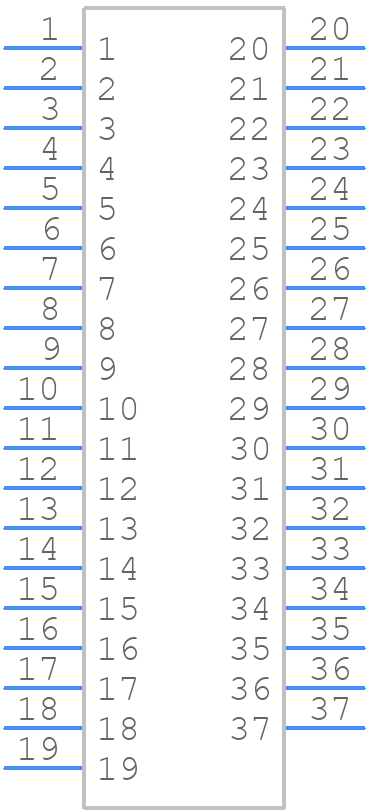

1-796409-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

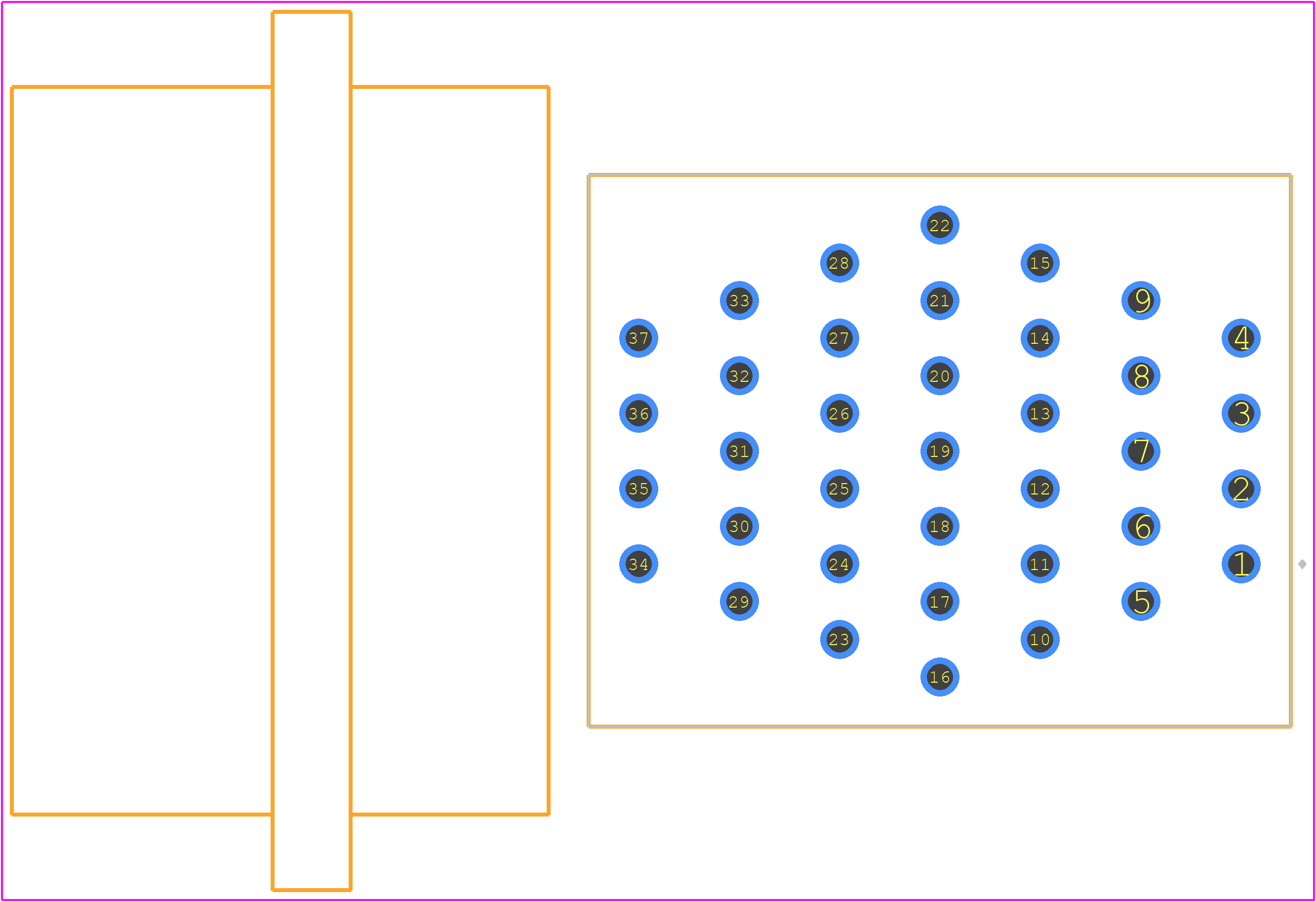

1-796409-1 - TE Connectivity PCB footprint - Other - Other - 1-796409-1-3
click to zoom
3D Models
1-796409-1 - TE Connectivity - 3D model - Other - 1-796409-1-3
click to zoom

1-796409-1 Details

  • Manufacturer Part Number:

    1-796409-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    RND PIN-SKT

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization:

    A

  • Polarization Key:

    POLARIZED

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Shell Size:

    23

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

1-796409-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the 1-796409-1 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this specification to ensure proper mating and to prevent damage to the connector.
  • Yes, the 1-796409-1 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications where vibration is a concern, such as in industrial, automotive, or aerospace environments.
  • The 1-796409-1 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F). It's also resistant to many chemicals, including fuels, oils, and cleaning solvents. However, it's essential to consult the datasheet and TE Connectivity's application notes for specific guidance on using the connector in harsh environments.
  • The 1-796409-1 connector is rated for a minimum of 500 mating cycles. This means it can be connected and disconnected at least 500 times without compromising its performance or reliability.
  • Yes, the 1-796409-1 connector is designed to be compatible with other TE Connectivity products, including cable assemblies, backshells, and contacts. This allows for flexibility in designing and building complex systems.
