Part Image

1-796949-0 - TE Connectivity

Description: PCB Terminal Blocks, Header, Wire-to-Board, 10 Position, .2 in [5.08 mm] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 12 AWG Wire Size

Download 1-796949-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-796949-0 - TE Connectivity - PCB symbol
click to zoom

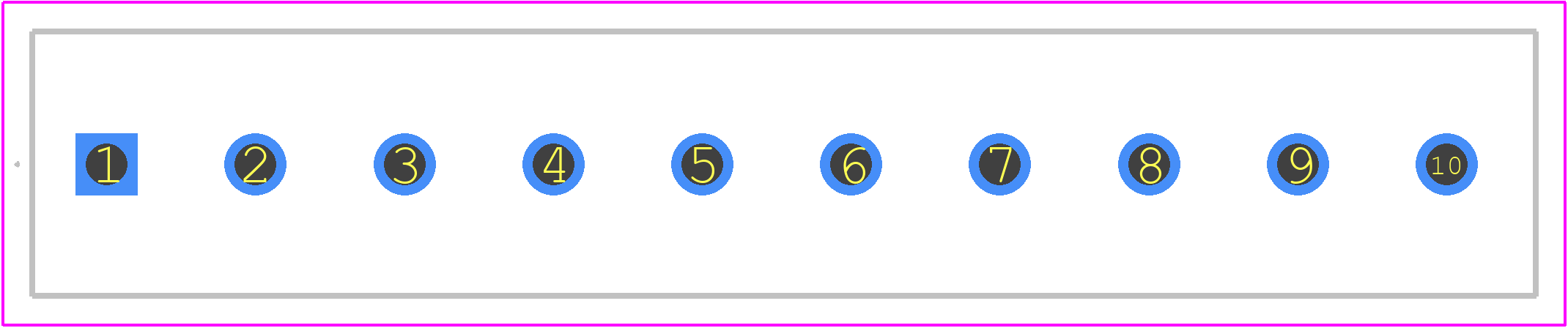

PCB Footprints
1-796949-0 - TE Connectivity PCB footprint - Other - Other - 1-796949-0-2
click to zoom
3D Models
1-796949-0 - TE Connectivity - 3D model - Other - 1-796949-0-2
click to zoom

1-796949-0 Details

  • Manufacturer Part Number:

    1-796949-0

  • Brand Name:

    Buchanan

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.76

  • Additional Feature:

    94V-0, PA66

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    17.5 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

1-796949-0 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-796949-0 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for the most up-to-date information.
  • The 1-796949-0 connector is designed to meet the requirements of various industries, including automotive and industrial, which often involve high-vibration environments. However, it's essential to evaluate the specific application requirements and consult with TE Connectivity's technical support to ensure the connector meets the necessary specifications.
  • The 1-796949-0 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95%. However, it's crucial to consult the datasheet and TE Connectivity's documentation for specific environmental ratings and any necessary derating or special considerations.
  • The 1-796949-0 connector is rated for a minimum of 250 mating cycles. However, this may vary depending on the specific application, usage, and environmental conditions. It's recommended to consult TE Connectivity's documentation and technical support for more information.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout and design guidelines to ensure proper connector operation and prevent damage. This includes considerations such as PCB thickness, hole size, and keep-out zones. Consult the datasheet and TE Connectivity's documentation for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-796949-0 Overview

Use the download button to access the 1-796949-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-796, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
