- Part Number 1-825433-7
- Manufacturer TE Connectivity
- Pin Count 17
- Part Category Connector
- Package Category Header, Vertical

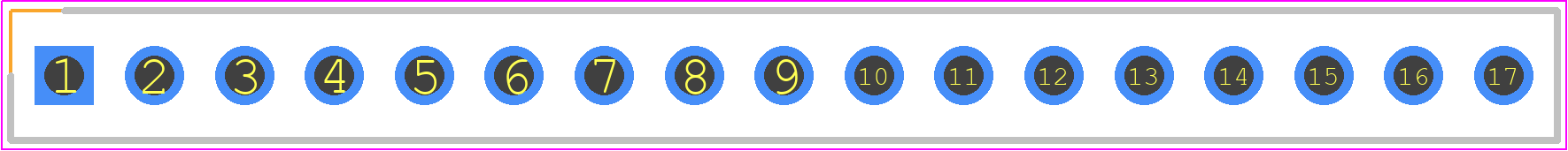

- Footprint Name Header, Vertical - 1-825433-7+-
- Released Date May 4, 2020
- Last Modified Date Dec 15, 2024 9:33 PM UTC
- Pinout / Pin List Click Here (Member Only)
1-825433-7 Details
-
Manufacturer Part Number:
1-825433-7
-
Brand Name:
AMP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
TE Connectivity
-
YTEOL:
1
-
Additional Feature:
AMPMODU
-
Body Breadth:
0.145 inch
