1-826632-8 - TE Connectivity

Description: CONN HEADER VERT 36POS 2.54MM

Download 1-826632-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

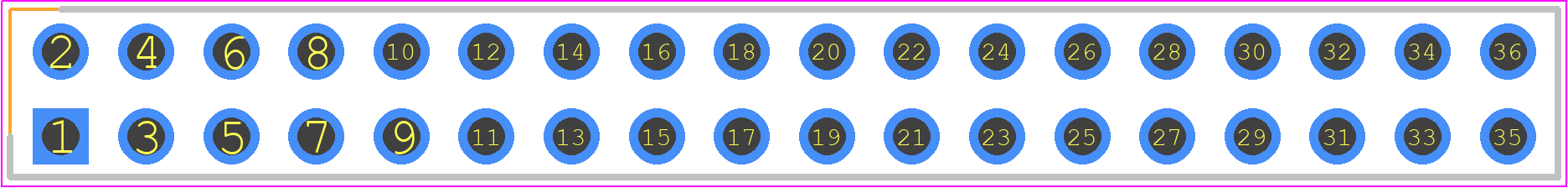

1-826632-8 - TE Connectivity PCB footprint - Header, Vertical - Header, Vertical - 1-826632-8
click to zoom
3D Models
1-826632-8 - TE Connectivity  - 3D model - Header, Vertical - 1-826632-8
click to zoom

1-826632-8 Details

  • Manufacturer Part Number:

    1-826632-8

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    compliant

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    7.69

  • YTEOL:

    9.1

  • Additional Feature:

    AMPMODU

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    GREEN

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    31.5u inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.126 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    36

  • UL Flammability Code:

    94V-0
