- Part Number 1-84981-4
- Manufacturer TE Connectivity
- Pin Count 16
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1-84981-4-1
- Released Date Oct 26, 2023
- Last Modified Date Mar 25, 2024 8:00 PM UTC
- Pinout / Pin List Click Here (Member Only)
1-84981-4 Details
-
Manufacturer Part Number:
1-84981-4
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LEAD FREE
-
ECCN Code:
EAR99
-
Factory Lead Time:
8 Weeks, 2 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
7
-
Additional Feature:
ROHS COMPLIANT
-
Body Breadth:
0.248 inch
-
Body Depth:
0.118 inch
1-84981-4 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
-
Yes, the 1-84981-4 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 1-84981-4 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the rating. Additionally, consider using additional protection measures, such as conformal coating or potting, for extreme environmental conditions.
-
While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with caution. However, using smaller or larger wire sizes may affect the connector's performance, reliability, and durability. Consult with TE Connectivity or a qualified engineer to determine the feasibility of using alternative wire sizes.
-
Yes, it's essential to follow proper PCB layout guidelines to ensure reliable connections and prevent damage to the connector. Key considerations include keeping the PCB traces away from the connector's mounting holes, using a sufficient solder mask, and ensuring proper clearance around the connector's body.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1-84981-4 Overview

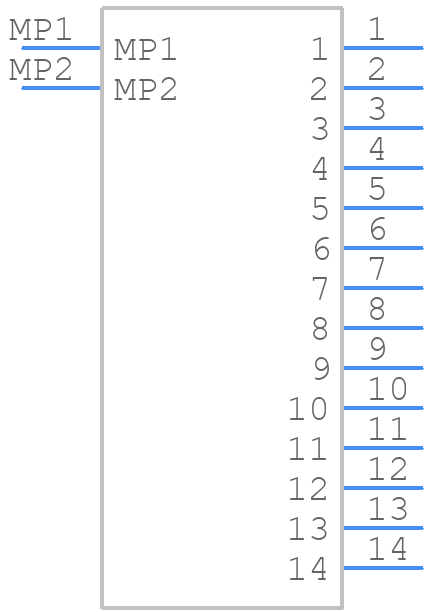

Use the download button to access the 1-84981-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-849,
or try a keyword search, such as Headers and Edge Type Connectors
