- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1-87233-0
- Part Number 1-87233-0
- Manufacturer TE Connectivity
- Pin Count 10
- Part Category Connector
- Package Category Header, Unshrouded - Right Angle PTH Pin

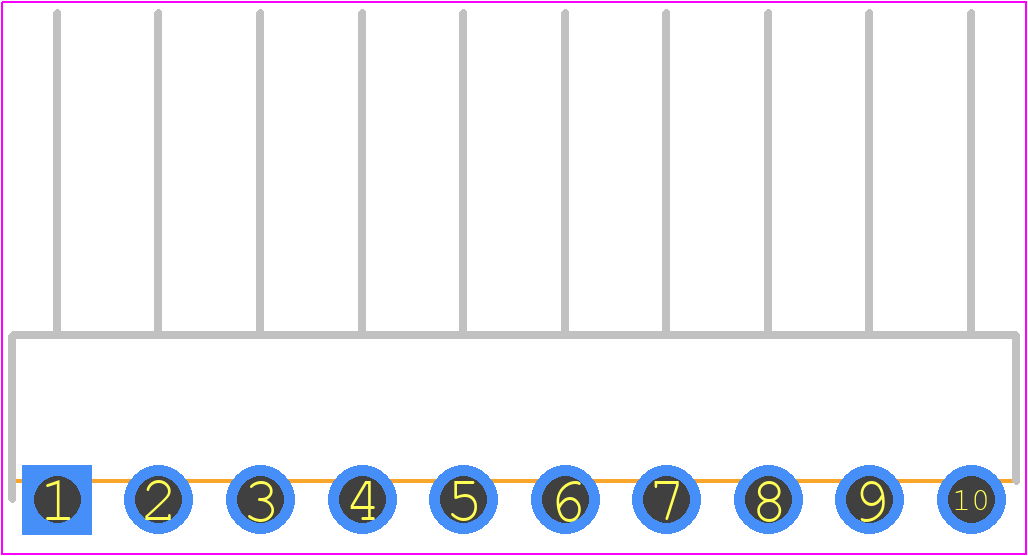

- Footprint Name Header, Unshrouded - Right Angle PTH Pin - 1-87233-0
- Released Date Mar 9, 2021
- Last Modified Date Dec 15, 2024 9:33 PM UTC
- Pinout / Pin List Click Here (Member Only)
1-87233-0 Details
-
Manufacturer Part Number:
1-87233-0
-
Brand Name:
AMP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
32 Weeks
-
Manufacturer:
TE Connectivity
-
YTEOL:
9.1
-
Connector Type:
BOARD CONNECTOR
1-87233-0 Frequently Asked Questions (FAQs)
-
The recommended torque value for the 1-87233-0 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the jack screws.
-
Yes, the 1-87233-0 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
-
The 1-87233-0 connector is rated for operating temperatures of -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH. However, it's recommended to consult the datasheet and TE Connectivity's application notes for specific guidance on using this connector in harsh environments.
-
The 1-87233-0 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent connections and disconnections.
-
Yes, the 1-87233-0 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1-87233-0 Overview
Use the download button to access the 1-87233-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-872,
or try a keyword search, such as Headers and Edge Type Connectors
