1-963448-2 - TE Connectivity

Description: Rows 3, Positions 29, Contact Size 2.8mm , Mating Tab Width 3mm, Mating Tab Thickness .8mm

Download 1-963448-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

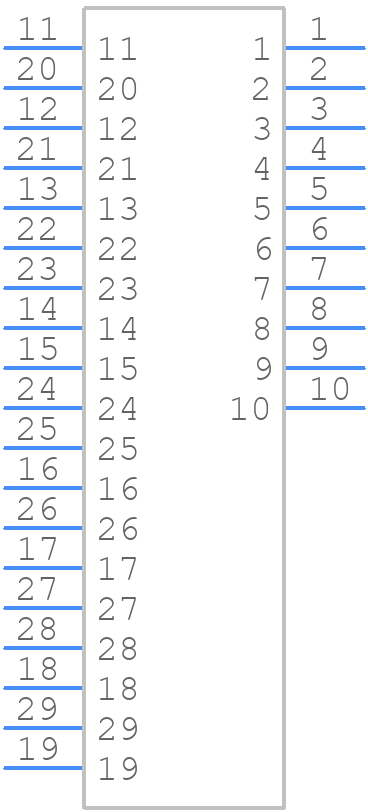

Symbol
1-963448-2 - TE Connectivity - PCB symbol
click to zoom

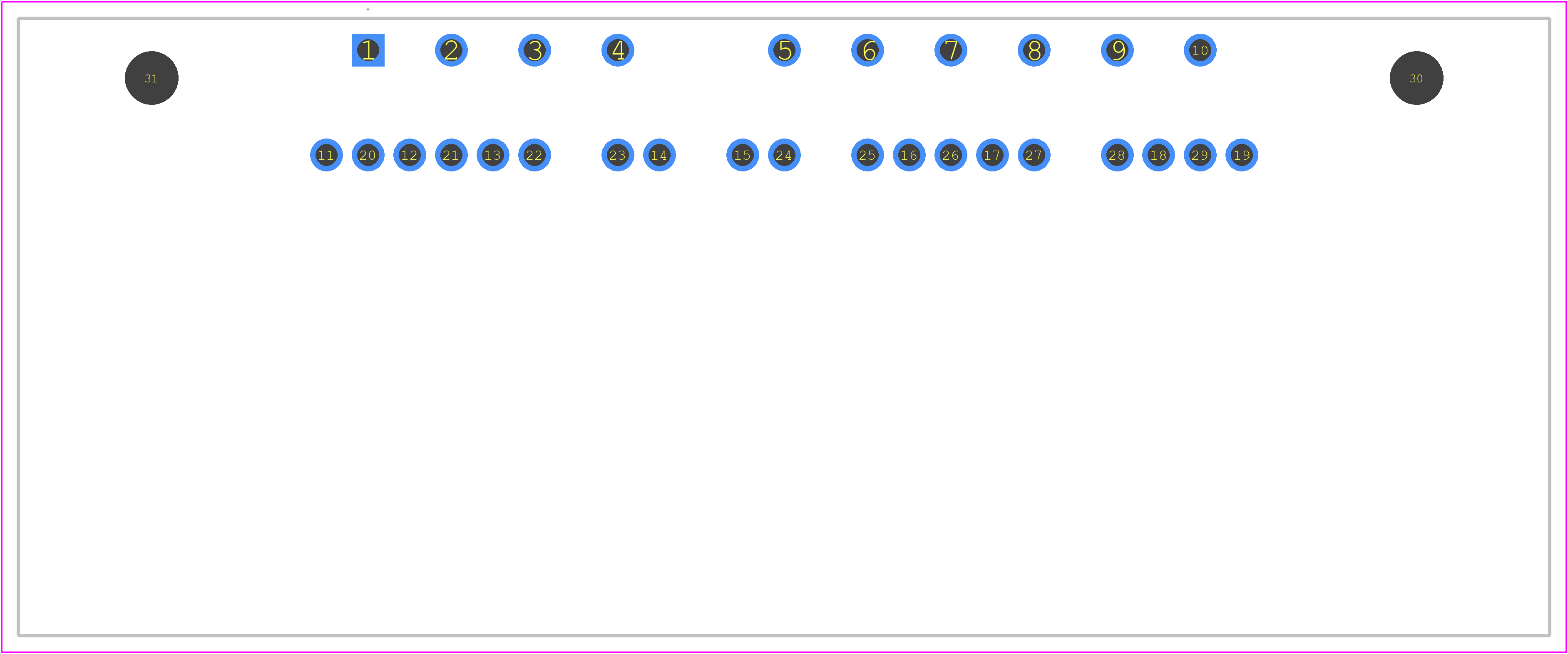

PCB Footprints
1-963448-2 - TE Connectivity PCB footprint - Other - Other - 1-963448-2-2
click to zoom
3D Models
1-963448-2 - TE Connectivity - 3D model - Other - 1-963448-2-2
click to zoom

1-963448-2 Details

  • Manufacturer Part Number:

    1-963448-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.46 inch

  • Body Depth:

    1.46 inch

  • Body Length:

    2.88 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Terminal Pitch:

    5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    29

1-963448-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 1-963448-2 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes ranging from AWG 18 to AWG 26, but this may affect the connector's performance and reliability.
  • The 1-963448-2 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
  • Yes, the connector is designed to withstand harsh environments, including high humidity and exposure to certain chemicals, but it's essential to follow proper installation and sealing procedures to ensure reliability.
