1-963540-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code C-F | Configuration Features: Number of Signal Positions 18 | PCB Mount Orientation Vertical | Number of Positions 18 | Number of Rows 2 | Contact Features: Contact Size .63mm | Mating Tab Width .63 MM | Mating Tab Thickness .63 MM | Contact Type Tab | Mating Tab Width .025 INCH | Contact Mating Area Plating Material Tin | Mating Tab Thickness .025 INCH | Dimensions: Connector Length 1.626 INCH | Connector Length 41.3 MM | Profile Height f

Download 1-963540-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-963540-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

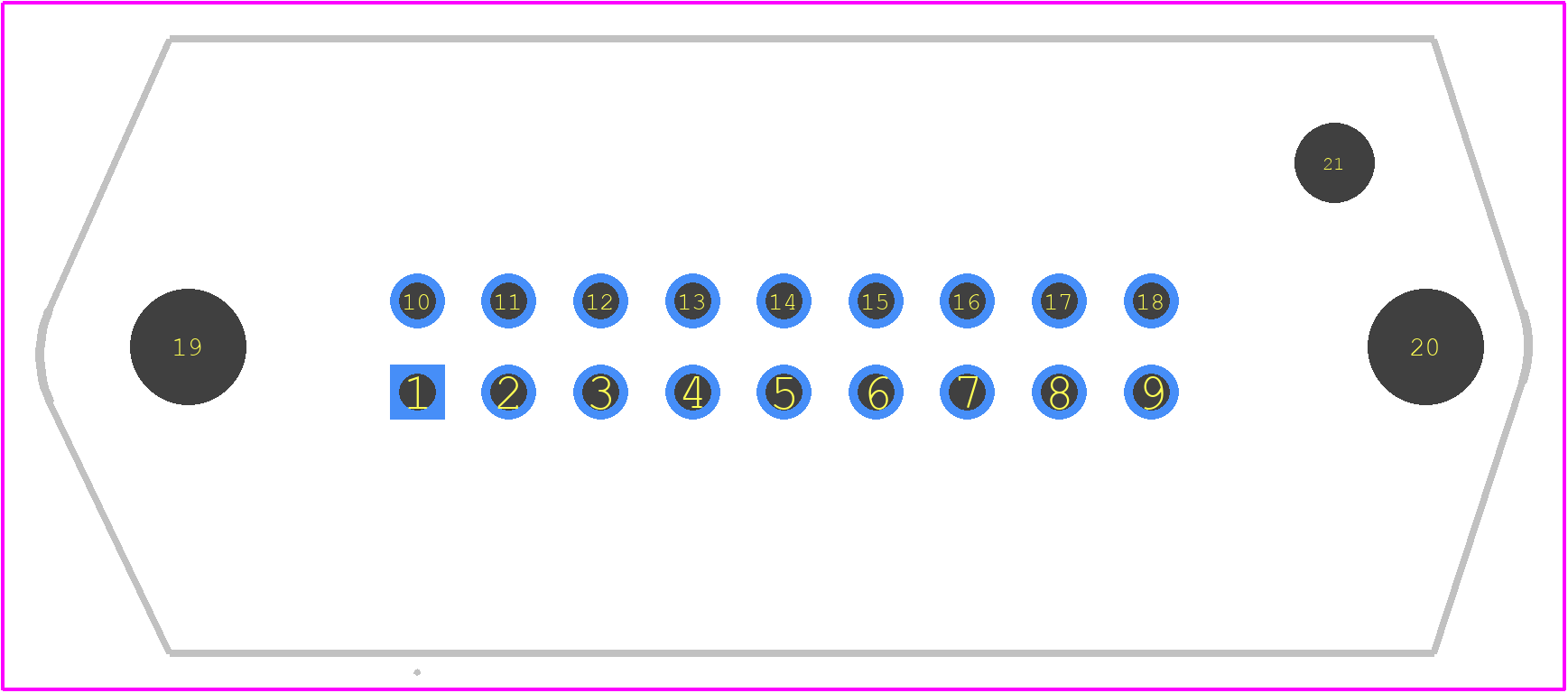

1-963540-1 - TE Connectivity PCB footprint - Other - Other - 1-963540-1-4
click to zoom
3D Models
1-963540-1 - TE Connectivity - 3D model - Other - 1-963540-1-4
click to zoom

1-963540-1 Details

  • Manufacturer Part Number:

    1-963540-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    25 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.669 inch

  • Body Length:

    1.626 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

1-963540-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 1-963540-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as industrial machinery, transportation, and more.
  • The 1-963540-1 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure the connector's performance and longevity.
  • The 1-963540-1 connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 1-963540-1 connector is part of TE Connectivity's modular connector system, which allows for easy integration with other TE products, such as cable assemblies, PCB connectors, and more.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-963540-1 Overview

Use the download button to access the 1-963540-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-963, or try a keyword search, such as Combination Line Connectors
