1-967250-1 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

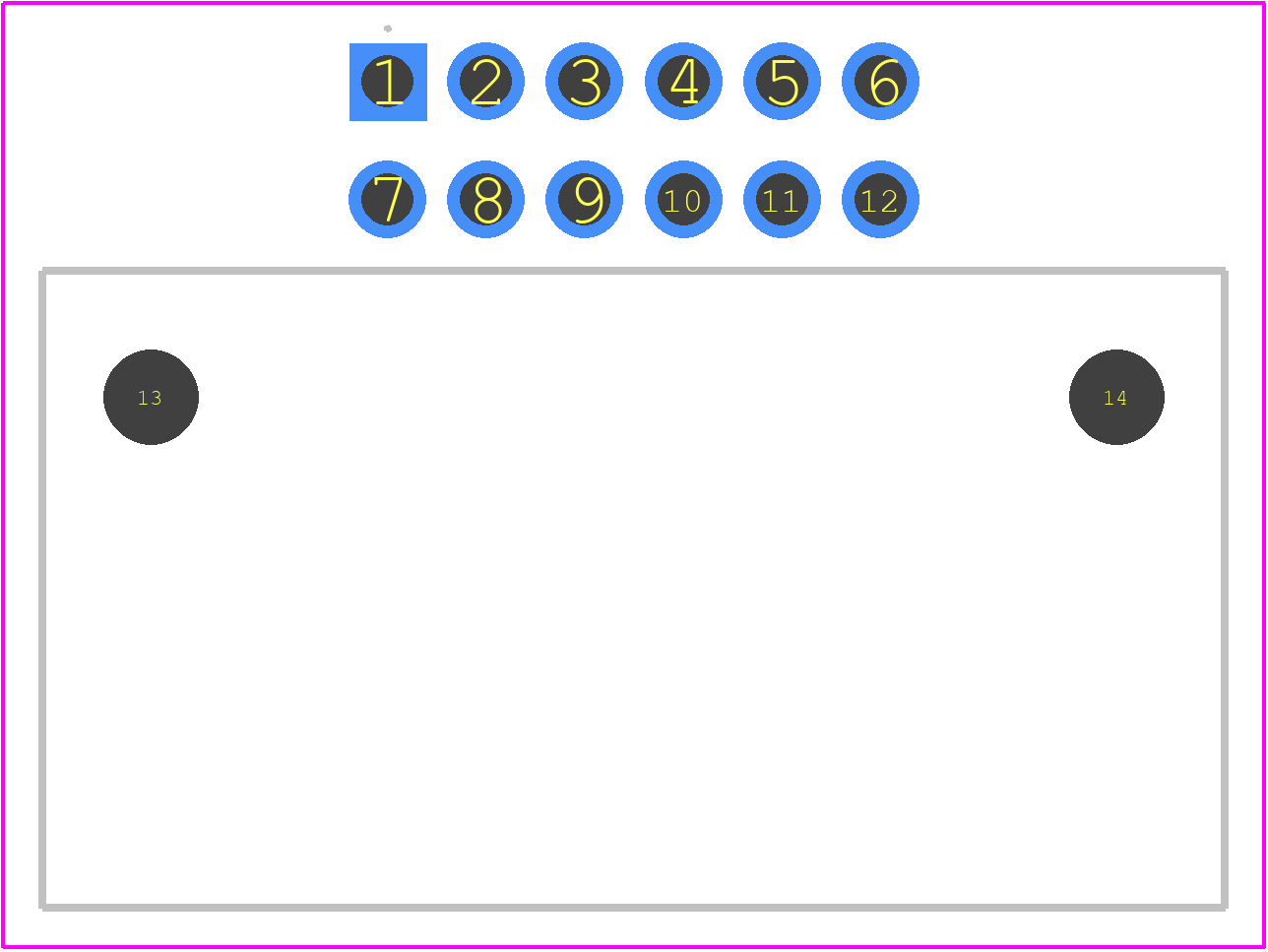

1-967250-1 - TE Connectivity PCB footprint - Other - Other - 1-967250-1-1

click to zoom

3D Models

1-967250-1 - TE Connectivity - 3D model - Other - 1-967250-1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-967250-1
Part Number 1-967250-1
Manufacturer TE Connectivity
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - 1-967250-1-1
Released Date Nov 1, 2025
Last Modified Date Nov 1, 2025 2:33 PM UTC
Pinout / Pin List Click Here (Member Only)

1-967250-1 Details

Manufacturer Part Number:
1-967250-1
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
18 Weeks
Manufacturer:
TE Connectivity
YTEOL:
8
Board Mounting Option:
BOARD LOCK
Body Breadth:
0.854 inch
Body Length:
1.181 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Panel Mount:
NO
Terminal Pitch:
2.5 mm
Termination Type:
SOLDER
Total Number of Contacts:
12

1-967250-1 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
Yes, the 1-967250-1 connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and aerospace.
The 1-967250-1 connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F) and is resistant to many chemicals, including fuels, oils, and cleaning solvents. However, it's essential to consult the datasheet and manufacturer's recommendations for specific environmental conditions.
Yes, the 1-967250-1 connector is designed to be compatible with other TE Connectivity products and can be used with third-party components, but it's essential to verify compatibility and ensure proper mating and performance.
The typical lead time for the 1-967250-1 connector is 6-8 weeks, and the minimum order quantity varies depending on the region and distributor. It's best to check with authorized distributors or the manufacturer for the most up-to-date information.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

1-967250-1 Overview

Use the download button to access the 1-967250-1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-967, or try a keyword search, such as Combination Line Connectors
