1-968720-1 footprint, schematic symbol and 3D model by TE Connectivity

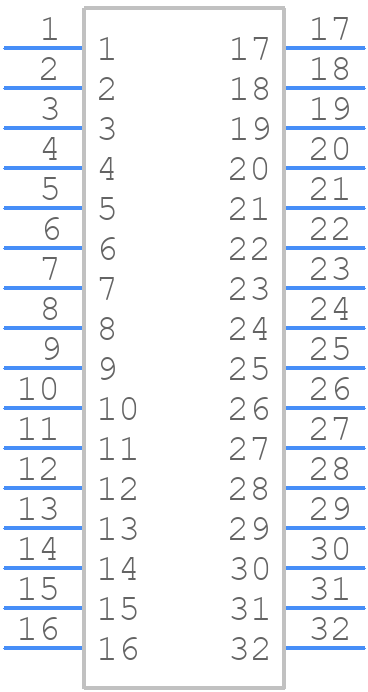

Symbol

click to zoom

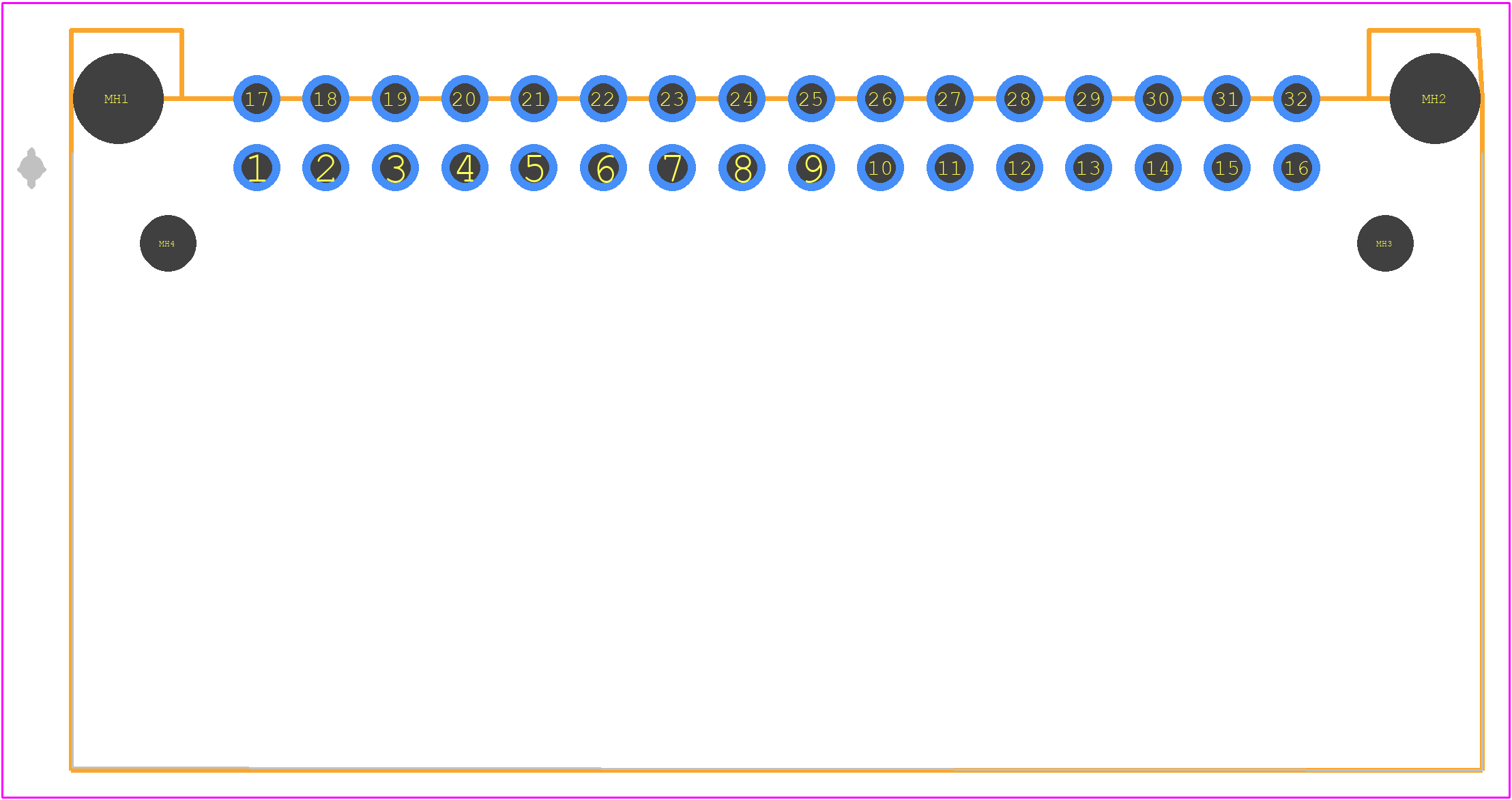

PCB Footprints

1-968720-1 - TE Connectivity PCB footprint - Other - Other - 1-968720-1-2

click to zoom

3D Models

1-968720-1 - TE Connectivity - 3D model - Other - 1-968720-1-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-968720-1
Part Number 1-968720-1
Manufacturer TE Connectivity
Pin Count 32
Part Category Connector
Package Category Other
Footprint Name Other - 1-968720-1-2
Released Date Oct 22, 2019
Last Modified Date Nov 28, 2024 1:18 PM UTC
Pinout / Pin List Click Here (Member Only)

1-968720-1 Details

Manufacturer Part Number:
1-968720-1
Brand Name:
AMP
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
18 Weeks
Manufacturer:
TE Connectivity
Body Breadth:
1.118 inch
Body Length:
2.199 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
PANEL
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
130 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Voltage:
12 V
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

1-968720-1 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
Yes, the 1-968720-1 connector is designed to withstand high-vibration environments. It has a ruggedized design and meets the requirements of IEC 61373 Cat 2, which ensures reliable performance in vibration-prone applications.
The 1-968720-1 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance and longevity.
The 1-968720-1 connector has a mating cycle life of 500 cycles minimum, which ensures reliable connections and disconnections over an extended period.
Yes, the 1-968720-1 connector is part of the TE Connectivity's modular connector family and is designed to be compatible with other products in the same family. However, it's essential to verify compatibility with specific products and applications to ensure proper mating and performance.

Trust Checks

Expert Contribution

System Verified

Community Approved

1-968720-1 Overview

Use the download button to access the 1-968720-1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-968, or try a keyword search, such as Combination Line Connectors
