1.5KE18A-E3/54 - Vishay

Description: Glass passivated chip junction Available in unidirectional and bidirectional 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 % Excellent clamping capability Very fast response time Low incremental surge resistance AEC-Q101 qualified available Solder dip 275 °C max. 10 s, per JESD 22-B106 Material categorization: for definitions of compliance please see www.vishay.com/doc?99912

Download 1.5KE18A-E3/54 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1.5KE18A-E3/54 - Vishay - PCB symbol
click to zoom
PCB Footprints

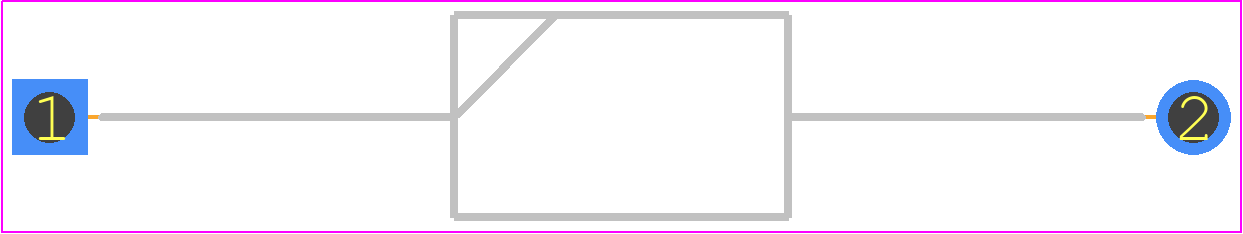

1.5KE18A-E3/54 - Vishay PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - 1.5KE
click to zoom
3D Models
1.5KE18A-E3/54 - Vishay - 3D model - Diodes, Axial Diameter Horizontal Mounting - 1.5KE
click to zoom

1.5KE18A-E3/54 Details

  • Manufacturer Part Number:

    1.5KE18A-E3/54

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Additional Feature:

    EXCELLENT CLAMPING CAPABILITY

  • Breakdown Voltage-Max:

    18.9 V

  • Breakdown Voltage-Min:

    17.1 V

  • Breakdown Voltage-Nom:

    18 V

  • Case Connection:

    ISOLATED

  • Clamping Voltage-Max:

    25.2 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Forward Voltage-Max (VF):

    3.5 V

  • JESD-30 Code:

    O-PALF-W2

  • JESD-609 Code:

    e3

  • Non-rep Peak Rev Power Dis-Max:

    1500 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Packing Method:

    TR, 13 INCH

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    6.5 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    15.3 V

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    15.3 V

  • Surface Mount:

    NO

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

1.5KE18A-E3/54 Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for the 1.5KE18A-E3/54 can be found in the Vishay Intertechnologies' application note AN10364, which provides guidelines for PCB layout and assembly.
  • To ensure proper soldering, follow the recommended soldering profile and guidelines provided in the Vishay Intertechnologies' application note AN10365. Additionally, use a solder with a melting point below 260°C to prevent thermal damage to the device.
  • The 1.5KE18A-E3/54 has an operating temperature range of -65°C to 150°C, but it's recommended to derate the device's power handling capability at higher temperatures to ensure reliable operation.
  • Yes, the 1.5KE18A-E3/54 is suitable for high-reliability applications, as it meets the requirements of AEC-Q101 and is manufactured in accordance with Vishay Intertechnologies' quality and reliability standards.
  • To select the correct TVS diode, consider factors such as the maximum voltage, current, and power handling requirements of your application. Consult the Vishay Intertechnologies' TVS diode selection guide or consult with a qualified engineer or application expert.
