- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1.5KE22A-TP
- Part Number 1.5KE22A-TP
- Manufacturer MCC
- Pin Count 2
- Part Category TVS Diode (Uni-directional)
- Package Category Diodes, Axial Diameter Horizontal Mounting

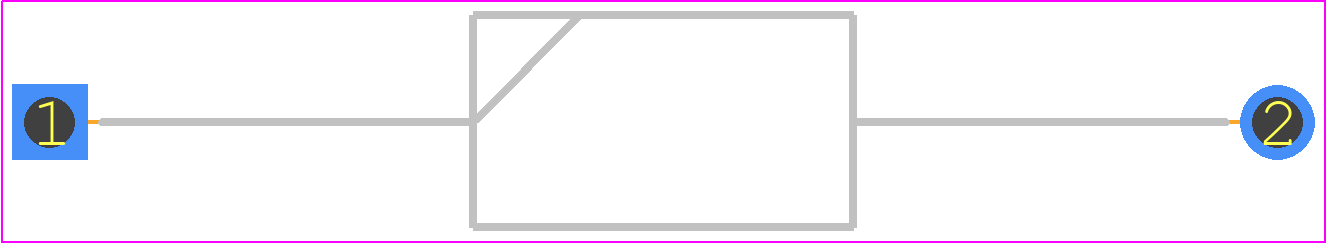

- Footprint Name Diodes, Axial Diameter Horizontal Mounting - DO-201AE
- Released Date Dec 29, 2023
- Last Modified Date Mar 13, 2024 1:00 PM UTC
- Pinout / Pin List Click Here (Member Only)
1.5KE22A-TP Details
-
Manufacturer Part Number:
1.5KE22A-TP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DO-201AE
-
Package Description:
PACKAGE-2
-
Pin Count:
2
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8541.10.00.50
-
Manufacturer:
Micro Commercial Components
1.5KE22A-TP Frequently Asked Questions (FAQs)
-
The recommended footprint and land pattern for the 1.5KE22A-TP can be found in the Micro Commercial Components' application note or in the IPC-7351 standard. It is essential to follow the recommended footprint and land pattern to ensure reliable soldering and to prevent thermal and mechanical stress on the component.
-
To prevent damage, handle the 1.5KE22A-TP by the body, avoid touching the leads or the glass passivation, and use anti-static wrist straps or mats to prevent electrostatic discharge. Also, avoid bending or flexing the leads, and use a pick-and-place machine or a vacuum pickup tool to handle the component during assembly.
-
The maximum allowable voltage derating for the 1.5KE22A-TP is typically 10-15% below the maximum rated voltage. However, it is recommended to consult the datasheet or contact Micro Commercial Components for specific derating guidelines, as excessive derating can affect the component's reliability and performance.
-
The 1.5KE22A-TP is rated for operation up to 150°C. However, it is essential to consider the component's power dissipation, thermal resistance, and the PCB's thermal design when using it in high-temperature applications. Consult the datasheet and perform thermal analysis to ensure the component operates within its specified limits.
-
To ensure proper soldering and reliability, follow the recommended soldering profile, use a solder with a melting point above 220°C, and ensure the component is properly aligned and seated on the PCB. Also, perform visual inspection, solder joint pull testing, and other reliability tests to verify the component meets the required standards.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1.5KE22A-TP Overview
Use the download button to access the 1.5KE22A-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1.5KE,
or try a keyword search, such as Transient Suppressors
