1.5KE22CA-TP - MCC

Description: TVS

Download 1.5KE22CA-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1.5KE22CA-TP - MCC - PCB symbol
click to zoom
PCB Footprints

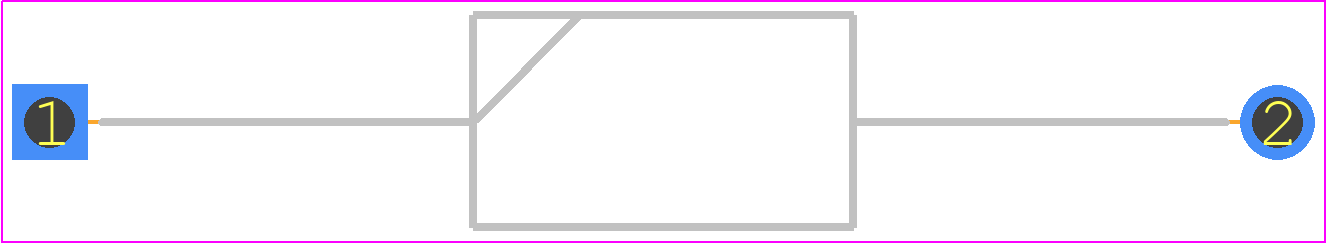

1.5KE22CA-TP - MCC PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - DO-201AE
click to zoom
3D Models
1.5KE22CA-TP - MCC - 3D model - Diodes, Axial Diameter Horizontal Mounting - DO-201AE
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for 1.5KE22CA-TP
  • Part Number 1.5KE22CA-TP
  • Manufacturer MCC
  • Pin Count 2
  • Part Category TVS Diode (Bi-directional)
  • Package Category Diodes, Axial Diameter Horizontal Mounting
  • Footprint Name Diodes, Axial Diameter Horizontal Mounting - DO-201AE
  • Released Date Dec 29, 2023
  • Last Modified Date Mar 13, 2024 1:00 PM UTC
  • Pinout / Pin List Click Here (Member Only)

1.5KE22CA-TP Details

  • Manufacturer Part Number:

    1.5KE22CA-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DO-201AE

  • Package Description:

    PACKAGE-2

  • Pin Count:

    2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6.31

  • Additional Feature:

    CMOS COMPATIBLE

  • Breakdown Voltage-Max:

    23.1 V

  • Breakdown Voltage-Min:

    20.9 V

  • Breakdown Voltage-Nom:

    22 V

  • Case Connection:

    ISOLATED

  • Clamping Voltage-Max:

    30.6 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-201AE

  • JESD-30 Code:

    O-PALF-W2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    1500 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Power Dissipation-Max:

    5 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    18.8 V

  • Surface Mount:

    NO

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

  • Time@Peak Reflow Temperature-Max (s):

    10

1.5KE22CA-TP Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for the 1.5KE22CA-TP can be found in the Micro Commercial Components' application note or in the IPC-7351 standard. It is essential to follow the recommended footprint and land pattern to ensure reliable soldering and to prevent thermal and mechanical stress on the component.
  • To prevent damage, handle the 1.5KE22CA-TP by the body, avoid touching the leads, and use anti-static wrist straps or mats to prevent electrostatic discharge. Also, avoid bending or flexing the leads, and use a vacuum pickup or tweezers to handle the component during assembly.
  • The maximum storage temperature for the 1.5KE22CA-TP is typically 40°C (104°F) with a relative humidity of 90% or less. Storage above this temperature can affect the component's reliability and lifespan.
  • The 1.5KE22CA-TP is a transient voltage suppressor (TVS) diode, and it is not designed for high-frequency applications. It is recommended to use a TVS diode with a lower capacitance and inductance for high-frequency circuits. Consult the datasheet or contact Micro Commercial Components for more information.
  • To select the correct TVS diode, consider the following factors: voltage rating, peak pulse current, clamping voltage, response time, and package type. Also, consider the environmental conditions, such as temperature and humidity, and the desired level of protection for your circuit. Consult the datasheet or contact Micro Commercial Components for more information.
