1.5KE27A-TP - MCC

Description: TVS

Download 1.5KE27A-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1.5KE27A-TP - MCC - PCB symbol
click to zoom
PCB Footprints

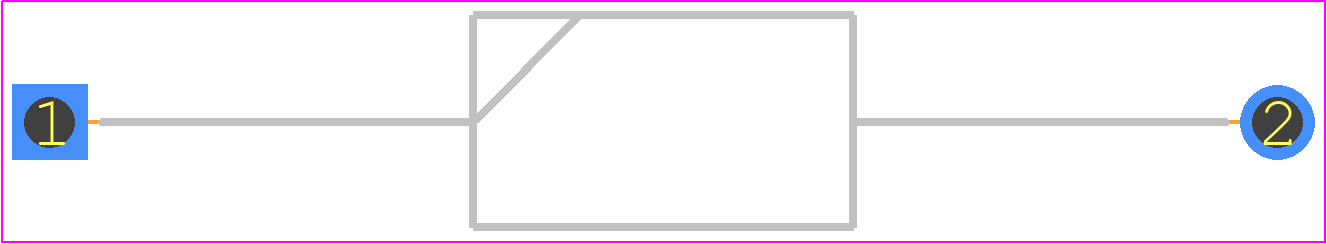

1.5KE27A-TP - MCC PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - DO-201AE
click to zoom
3D Models
1.5KE27A-TP - MCC - 3D model - Diodes, Axial Diameter Horizontal Mounting - DO-201AE
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for 1.5KE27A-TP
  • Part Number 1.5KE27A-TP
  • Manufacturer MCC
  • Pin Count 2
  • Part Category TVS Diode (Uni-directional)
  • Package Category Diodes, Axial Diameter Horizontal Mounting
  • Footprint Name Diodes, Axial Diameter Horizontal Mounting - DO-201AE
  • Released Date Dec 29, 2023
  • Last Modified Date Mar 13, 2024 1:00 PM UTC
  • Pinout / Pin List Click Here (Member Only)

1.5KE27A-TP Details

  • Manufacturer Part Number:

    1.5KE27A-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DO-201AE

  • Package Description:

    PACKAGE-2

  • Pin Count:

    2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6.36

  • Additional Feature:

    CMOS COMPATIBLE

  • Breakdown Voltage-Max:

    28.4 V

  • Breakdown Voltage-Min:

    25.7 V

  • Breakdown Voltage-Nom:

    27 V

  • Case Connection:

    ISOLATED

  • Clamping Voltage-Max:

    37.5 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-201AE

  • JESD-30 Code:

    O-PALF-W2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    1500 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    5 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    23.1 V

  • Surface Mount:

    NO

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

  • Time@Peak Reflow Temperature-Max (s):

    10

1.5KE27A-TP Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for the 1.5KE27A-TP can be found in the Micro Commercial Components' application note or in IPC-7351 standard. It's essential to follow the recommended footprint to ensure proper soldering and to prevent thermal issues.
  • The 1.5KE27A-TP should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to store them in their original packaging or in a similar anti-static packaging to prevent damage from electrostatic discharge (ESD).
  • The maximum allowable voltage derating for the 1.5KE27A-TP is typically 10-15% below the rated voltage. However, it's recommended to consult the datasheet or contact Micro Commercial Components for specific derating guidelines to ensure reliable operation.
  • The 1.5KE27A-TP is rated for operation up to 150°C. However, it's essential to consider the derating factors and ensure that the device does not exceed its maximum junction temperature (Tj) to prevent thermal runaway and ensure reliable operation.
  • To select the correct 1.5KE27A-TP, consider the following factors: voltage rating, current rating, power rating, and package type. Ensure that the device meets the specific requirements of your application, and consult the datasheet or contact Micro Commercial Components if you're unsure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1.5KE27A-TP Overview

Use the download button to access the 1.5KE27A-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1.5KE, or try a keyword search, such as Transient Suppressors
