- Part Number 1.5KE7.5A-TP
- Manufacturer MCC
- Pin Count 2
- Part Category TVS Diode (Uni-directional)
- Package Category Diodes, Axial Diameter Horizontal Mounting
- Footprint Name Diodes, Axial Diameter Horizontal Mounting - 1.5KE7.5A-9
- Released Date Dec 29, 2023
- Last Modified Date Mar 13, 2024 1:00 PM UTC
- Pinout / Pin List Click Here (Member Only)
1.5KE7.5A-TP Details
-
Manufacturer Part Number:
1.5KE7.5A-TP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DO-201AE
-
Package Description:
PACKAGE-2
-
Pin Count:
2
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8541.10.00.50
-
Manufacturer:
Micro Commercial Components
1.5KE7.5A-TP Frequently Asked Questions (FAQs)
-
The recommended footprint and land pattern for the 1.5KE7.5A-TP can be found in the Micro Commercial Components' application note or in the IPC-7351 standard. It is essential to follow the recommended footprint and land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
-
To select the correct TVS diode, consider the following factors: the maximum voltage rating, peak pulse power, and clamping voltage required for your application. The 1.5KE7.5A-TP has a maximum voltage rating of 7.5V, a peak pulse power of 1500W, and a clamping voltage of 12.4V. Ensure that these parameters meet your application's requirements.
-
The main difference between TVS diodes in the same series is the breakdown voltage (VBR) and the clamping voltage (VC). The 1.5KE7.5A-TP has a VBR of 7.5V and a VC of 12.4V, while other TVS diodes in the same series have different VBR and VC values. Choose the TVS diode that best matches your application's voltage requirements.
-
The 1.5KE7.5A-TP is a commercial-grade component, and its reliability and temperature rating may not be suitable for high-reliability or high-temperature applications. If your application requires high reliability or operation at extreme temperatures, consider using a TVS diode with a higher temperature rating or a more stringent reliability specification.
-
To ensure proper soldering and mounting, follow the recommended soldering profile and handling procedures. Use a soldering iron with a temperature range of 250°C to 260°C, and apply a soldering time of 2-3 seconds. Handle the component by the body, and avoid touching the leads or the glass passivation to prevent damage.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1.5KE7.5A-TP Overview

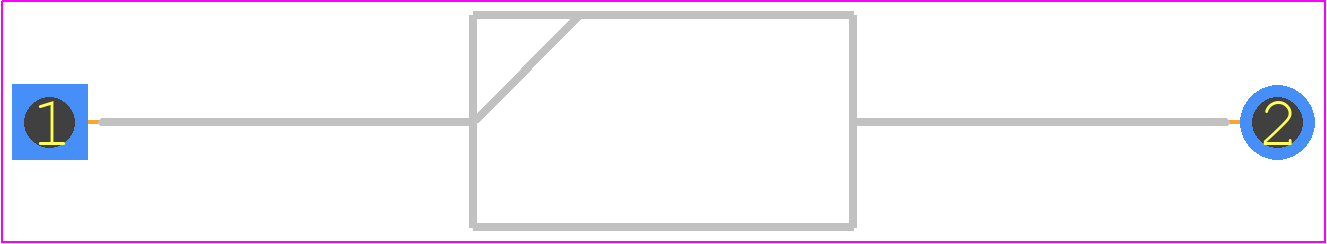

Use the download button to access the 1.5KE7.5A-TP schematic symbol, PCB footprint, and 3D model.
