The recommended land pattern for the 1.5SMC16CA can be found in the Bourns application note AN164, which provides guidelines for surface mount assembly and layout considerations.
To handle the high surge current rating, ensure that the PCB trace width and thickness are sufficient to handle the maximum surge current. A minimum of 1 oz (35 μm) copper thickness and a trace width of 20-30 mils (0.5-0.75 mm) is recommended.
While the 1.5SMC16CA is rated for operation up to 150°C, it's essential to consider the derating curves provided in the datasheet to ensure the device operates within its specified limits. Additionally, ensure that the PCB material and other components can withstand the high-temperature environment.
To select the correct TVS diode, consider the following factors: working voltage, surge current, response time, and clamping voltage. The 1.5SMC16CA is suitable for applications requiring a high surge current rating and low clamping voltage. Consult the datasheet and Bourns' TVS diode selection guide for more information.
Yes, follow the recommended soldering profile and rework guidelines provided in the Bourns application note AN164 to ensure the device is not damaged during the assembly process. Avoid excessive heat, and use a soldering iron with a temperature-controlled tip.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1.5SMC16CA Overview

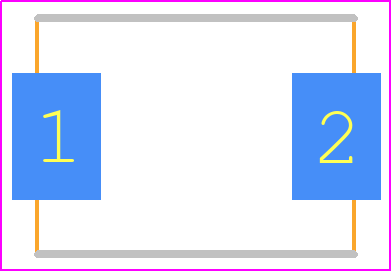

Use the download button to access the 1.5SMC16CA schematic symbol, PCB footprint, and 3D model.
