10-08-5101 - Molex

Description: KK Header, Vertical, with Polarizing Backwall, 10 Circuits

Download 10-08-5101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10-08-5101 - Molex - PCB symbol
click to zoom
PCB Footprints

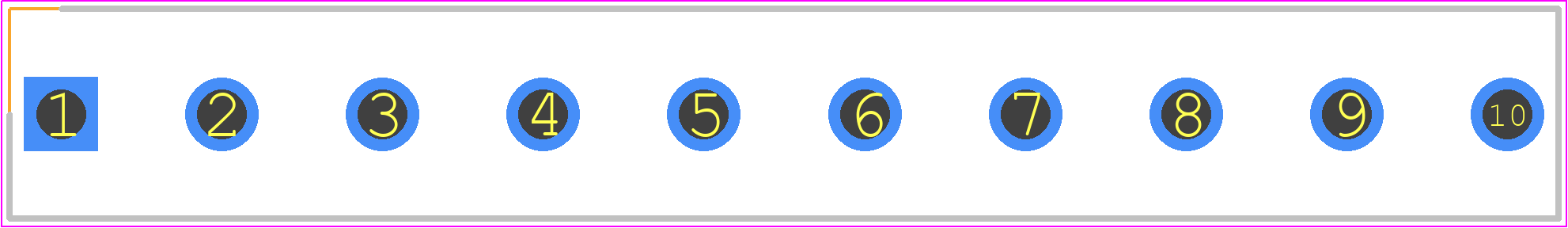

10-08-5101 - Molex PCB footprint - Header, Vertical - Header, Vertical - 10-08-5101
click to zoom
3D Models
10-08-5101 - Molex - 3D model - Header, Vertical - 10-08-5101
click to zoom

10-08-5101 Details

  • Manufacturer Part Number:

    10-08-5101

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    India, Ireland, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-2
