10-2810-90C - ARIES

Description: 10 (2 x 5) Pos DIP, 0.2" (5.08mm) Row Spacing Socket Gold Through Hole, Right Angle, Vertical

Download 10-2810-90C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10-2810-90C - ARIES - PCB symbol
click to zoom
PCB Footprints

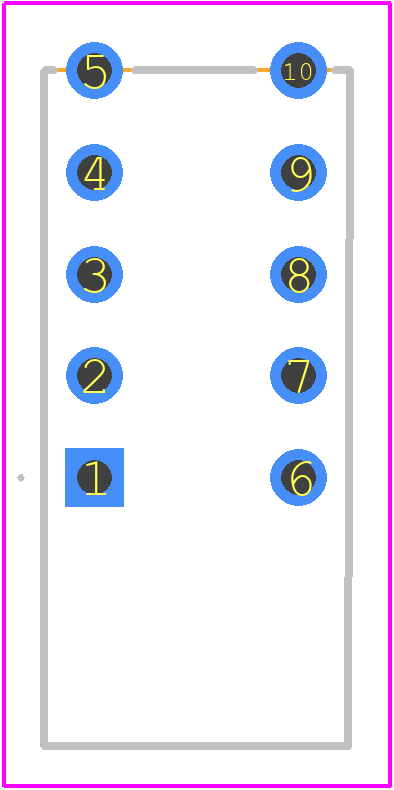

10-2810-90C - ARIES PCB footprint - Other - Other - 10-2810-90C-3
click to zoom
3D Models
10-2810-90C - ARIES - 3D model - Other - 10-2810-90C-3
click to zoom

10-2810-90C Details

  • Manufacturer Part Number:

    10-2810-90C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-HB

  • Body Breadth:

    0.3 inch

  • Body Depth:

    0.665 inch

  • Body Length:

    0.5 inch

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    BE-CU

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP10

  • Housing Material:

    NYLON

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    RIGHT ANGLE

  • Number of Contacts:

    10

  • Operating Temperature-Max:

    105 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.2 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

10-2810-90C Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 in-lbs (0.056-0.113 Nm) to ensure secure connections.
  • Yes, the 10-2810-90C is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • The 10-2810-90C is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH, making it suitable for use in harsh environments.
  • The 10-2810-90C has a mating cycle life of 500 cycles, ensuring reliable connections over an extended period.
  • While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes ranging from 20 AWG to 28 AWG, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
