The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) according to Molex's application notes.
Yes, the 10321071 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to Molex's testing and validation procedures.
The operating temperature range for the 10321071 connector is -40°C to 105°C (-40°F to 221°F) according to the datasheet and Molex's specifications.
The 10321071 connector has a sealed design and is rated to IP67, making it suitable for use in harsh environments with high humidity or exposure to chemicals. However, it's essential to follow proper installation and sealing procedures to maintain the connector's integrity.
While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 10321071 connector. However, it's crucial to ensure the wire size and insulation meet the connector's specifications and that the wire is properly terminated to avoid damage or electrical issues.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
10-32-1071 Overview

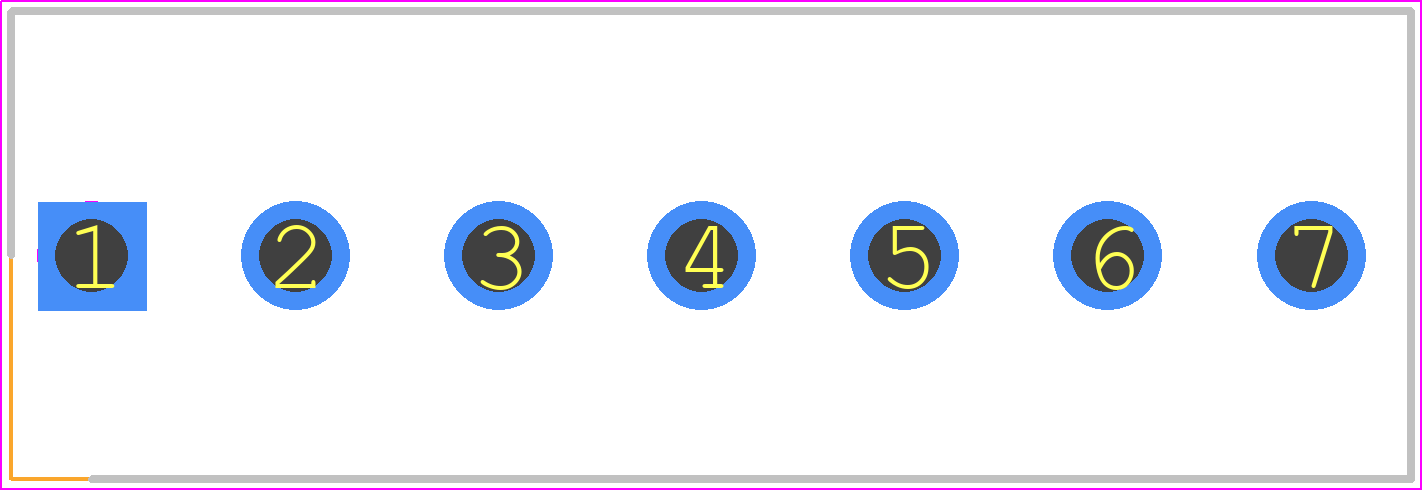

Use the download button to access the 10-32-1071 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10-32,
or try a keyword search, such as Power Connectors
